Understanding Indicator Locks: Purpose and Functionality
An indicator lock is a specialized locking mechanism designed to provide clear, visual confirmation of a room's occupancy status—typically signaling 'Vacant' (green) or 'In-Use' (red) through an external window. Unlike standard privacy locks, these devices eliminate the guesswork and social awkwardness associated with locked restroom or fitting room doors. In commercial hardware engineering, the primary difference between these locks lies in their mechanical operation (deadbolt vs. leverset) and their durability rating, defined by ANSI/BHMA standards.
The Role of ANSI/BHMA Grade 1 Hardware
In high-traffic commercial environments, hardware must withstand thousands of cycles. When selecting an indicator lock, the Grade 1 designation is the gold standard, ensuring the device meets the highest requirements for operational force, cycle testing, and strength. Whether you choose a Cal-Royal IND90-G2 Indicator Deadbolt for maximum security or a heavy-duty leverset, the Grade 1 classification guarantees structural integrity in demanding environments.
Technical Comparison: Deadbolts vs. Leversets
Choosing between a deadbolt-based indicator and a lever-based indicator depends on the entry requirements of the facility.
1. Indicator Deadbolts
The Cal-Royal IND90-G2 Indicator Deadbolt is engineered for applications where an additional layer of security is preferred alongside visual notification. Because it operates as a deadbolt, it provides superior resistance against forced entry compared to standard latch-only levers. Featuring a 2-3/4" backset and solid steel bolt material, this model is ideal for commercial restrooms that require ADA-compliant emergency releases, allowing staff access from the exterior in the event of an emergency.
2. Privacy Leversets
For standard restroom privacy, a INDLEV-20 PRIVACY INDICATOR LEVERSET provides a more ergonomic solution. Leversets are inherently more accessible than deadbolts, meeting universal design standards that benefit individuals with limited dexterity. The INDLEV-20 utilizes a reversible handing mechanism and fits door thicknesses of 1-3/8" to 1-3/4", making it highly versatile for facility maintenance upgrades.
3. Heavy-Duty Cylindrical Levers

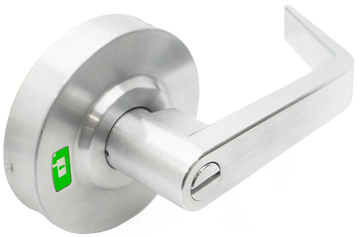

When durability is the primary concern, the Grade 1 Heavy Duty Cylindrical Leverset Privacy With Indicator is the optimal choice. This hardware is built to ANSI A156.2 Series 4000 specifications. The heavy-duty internal spring mechanism ensures that the lever remains operational over years of intense commercial use, while the integrated indicator display offers high-contrast visibility for users.
Implementation and Selection Criteria
When specifying indicator locks, engineers must consider door thickness, backset requirements, and local fire codes. Most commercial indicators are designed for 1-3/8" to 1-3/4" doors, but verifying the existing borehole and strike plate alignment is critical. If replacing non-indicator hardware, ensure the new latch throw (typically 1/2") aligns with the existing ASA 4-7/8" strike plate.
Frequently Asked Questions
What is the main difference between an indicator lock and a standard privacy lock?
The difference is the visual signaling feature. An indicator lock includes an external display window that indicates whether the room is occupied or vacant, reducing the risk of people trying to enter an occupied room.
Are indicator locks ADA compliant?
Yes, many commercial indicator locks, such as the Grade 1 Heavy Duty Cylindrical Leverset Privacy With Indicator, are designed to be ADA compliant, featuring lever handles and emergency override functions that ensure easy access for all users.
Can commercial indicator locks be opened from the outside?
Yes, by design. All commercial-grade occupancy locks include an emergency release feature on the exterior trim. This allows staff or maintenance personnel to unlock the door with a coin, screwdriver, or specific key if an individual inside becomes incapacitated.
Why choose Grade 1 over Grade 2 or 3?
Grade 1 hardware is engineered for high-frequency, high-abuse commercial environments. It has been tested to survive significantly more operational cycles, providing a longer service life and better return on investment for public-facing buildings.
