10VL, Vision Lite Frame Standard Profile for 1 inch Thick Glass
10VL Standard-Profile Vision Lite Frame for 1-Inch Glass
Usually Ships: 1-3 Business Days

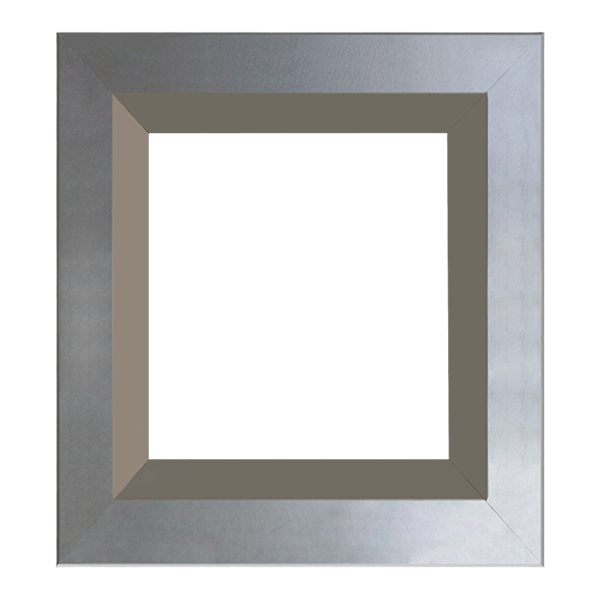

The Cal-Royal 10VL Vision Lite Frame is a standard-profile beveled steel frame for 1-inch-thick glass in a 1-3/4-inch-thick door. It provides the framing around a compatible door vision opening so users can see through the selected glazing. This listing is for the frame only; glass is not included.
Practical Uses
- Commercial and institutional doors: Provides a framed vision opening where the door design and selected glazing permit it.
- Schools, offices, and healthcare facilities: Supports visibility through suitable room and corridor doors, subject to the opening's privacy and glazing requirements.
- Replacement projects: Consider after matching the door thickness, glass thickness, cutout, frame dimensions, and applicable assembly requirements.
Everyday example: At a meeting-room doorway, a compatible glazed opening lets users look through the door before opening it into an occupied area. The installer selects the correct 10VL size and appropriate 1-inch glazing for the specified door assembly rather than assuming that any glass pane or existing cutout will fit.
Construction and Finish
The manufacturer catalog identifies 20-gauge cold-rolled steel, mitered welded corners, and countersunk mounting holes. Single-side attachment uses matching mounting screws. The listed finish is a baked-on powder coat in Standard Bronze.
The 10VL is the catalog's standard-profile version for 1-inch glass. Select the correct frame for the full glazing thickness and required glazing system. Do not substitute the thinner-glass VL configuration solely because the profile or overall opening size looks similar.
Sizing and Ordering
order size equals the door opening size, the visible vision opening is 2 inches under the order size, and the glass size is 1 inch under the order size. Confirm both width and height, the exact supplied 10VL configuration, and the required glazing clearances before ordering glass or cutting the door.
Choose an available width-and-height combination from this listing. Individual option values do not establish that every combination or every catalog custom size is available. For replacement work, measure the actual cutout and existing components rather than the visible glass alone.
Installation and Fit Checks
- Verify the door: Confirm the 1-3/4-inch thickness, permitted vision-opening location, cutout size, and any required perimeter reinforcement with the door manufacturer.
- Verify the glazing: Use the specified 1-inch glass assembly and compatible approved glazing materials. Check glass markings, orientation, and the requirements for the complete opening.
- Check the supplied components: Confirm screw length, frame engagement, clearances, and installation instructions for the actual 10VL assembly before fitting.
- Fit without distortion: Square the frame and tighten fasteners evenly according to the applicable instructions. Avoid bending the frame or applying uneven pressure to the glazing.
- Inspect after fitting: Check secure attachment, glazing seating, and unobstructed door operation before returning the opening to service.
Problems It Helps Address
- A door needs a vision opening: Provides the frame for a compatible glazed opening.
- Thicker glazing needs the correct frame: Identifies the 10VL configuration intended for 1-inch glass.
- Replacement-size confusion: Distinguishes the ordered cutout size from visible opening and glass dimensions.
Product Details
- Series: 10VL
- Type: Standard-profile beveled vision lite frame
- Glass thickness: 1 inch
- Door thickness: 1-3/4 inches
- Material: 20-gauge cold-rolled steel
- Corners: Mitered and welded
- Attachment: Single side, with matching mounting screws
- Finish: Baked-on powder coat, Standard Bronze
- Glass: Not included in this frame-only listing
Rated-Opening Selection
The manufacturer catalog describes the vision-kit family for 45-180-minute fire-rated applications and directs users to the approved sizes. That family-level range does not assign a rating to every 10VL size, glass type, or door combination. Confirm the exact frame, glazing, opening size, door label, and current approved installation requirements with the manufacturer and responsible project professional. Do not modify a labeled door or assume that the frame alone establishes assembly compliance.
Manufacturer Catalog
Vision Lite Kits Catalog, Including 10VL Standard-Profile Frames for 1-Inch Glass
