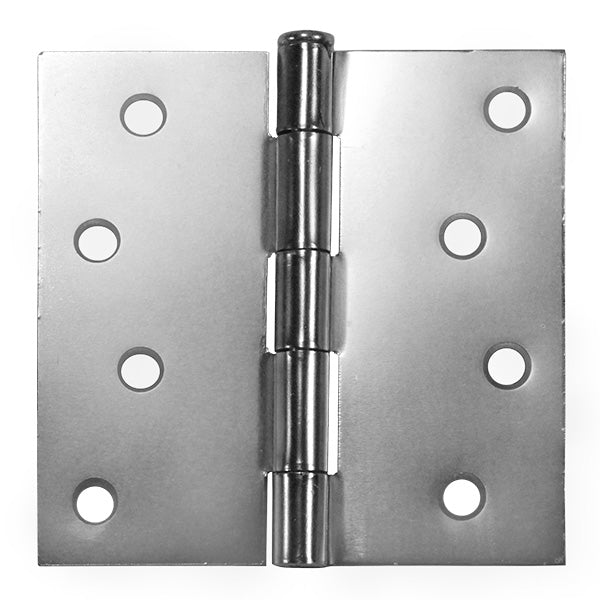

RH90 3-1/2-Inch x 3-1/2-Inch Square-Corner Residential Hinge

Our RH90 is a 3-1/2-inch x 3-1/2-inch residential-weight plain-bearing hinge with square corners. The residential hinge catalog identifies this full-mortise model with five knuckles, .085-inch gauge, and template-type preparation for the 3-1/2-inch size. This listing offers US4 Satin Brass.

RH90 Specifications

  • Part number: RH90.
  • Nominal dimensions: 3-1/2 inches x 3-1/2 inches.
  • Corner profile: Square.
  • Gauge: .085 inch.
  • Weight classification: Residential weight.
  • Bearing type: Plain bearing.
  • Construction: Five knuckles.
  • Mounting: Full mortise.
  • Preparation: Template type for this 3-1/2-inch residential model.
  • Listed finish: US4, Satin Brass.

Match the Square-Corner Preparation

Our RH90 has one leaf recessed into the door and the other into the frame. Its square-corner profile should match the intended pockets, and its .085-inch gauge should suit the mortise depth. Compare the actual leaf dimensions, screw positions, and clearances before replacing an existing hinge.

A rounded-corner hinge is not an automatic substitute, even if its nominal height and width match. Standard-weight commercial alternatives can also differ in gauge and screw layout. Confirm the exact preparation rather than forcing a near match into place.

Satin Brass Finish

The offered US4 Satin Brass finish can be selected to coordinate with the opening's other visible hardware. Confirm any specified base material separately; the finish designation alone should not be treated as a claim that the hinge is solid brass.

Practical Applications

  • Residential replacement work: Match an existing RH90 or a separately verified preparation with the same dimensions, gauge, and screw pattern.
  • Prepared new doors: Use where the schedule calls for this residential-weight square-corner plain-bearing configuration.
  • Hardware refreshes: Coordinate the listed Satin Brass finish while retaining the required hinge geometry.

Everyday example: An installer refreshing a residential room door checks the existing square-corner hinges and confirms the 3-1/2-inch dimensions and .085-inch gauge. After comparing the screw positions and selecting the required hinge quantity, they support the door, fit the RH90 hinges, and verify free movement and reliable latching.

Installation Guidance

  • Check the application: Review actual door dimensions, weight, usage, hinge quantity, and attached hardware.
  • Inspect both pockets: Compare mortise depth, square-corner outline, and screw locations with the supplied hinge.
  • Repair support: Address damaged receiving material or stripped fastening points before fitting.
  • Verify fasteners: The residential catalog references 3/4-inch x #9 wood screws for the standard 3-1/2-inch residential family. Confirm supplied contents and suitability for the actual substrate.
  • Maintain alignment: Keep hinge axes consistent and avoid pulling mismatched leaves into position with screw pressure.
  • Test operation: Check the full swing for rubbing, binding, uneven gaps, and reliable latch engagement.

Problems It Helps Address

  • A worn residential hinge needs replacement: Provides the identified RH90 configuration.
  • The opening needs square corners: Matches the specified profile rather than assuming a rounded-corner substitute will fit.
  • Visible hardware needs coordination: Offers the listed US4 Satin Brass finish.

Selection and Care

Residential plain-bearing construction is distinct from ball-bearing or heavy-weight construction. Confirm the complete hardware requirements before selecting this model for a closer-equipped, heavy, high-frequency, or rated opening. Nominal dimensions alone do not establish a universal door-weight capacity or complete-opening compliance.

Verify purchase quantity and fastening contents before ordering; catalog packing references do not establish the number supplied by a selected purchase. Do not infer an NRP feature or warranty from the hinge dimensions or finish.

Periodically inspect screws, alignment, and hinge condition. Clean using methods appropriate to the supplied finish, and correct looseness or binding promptly rather than continuing to force the door.
