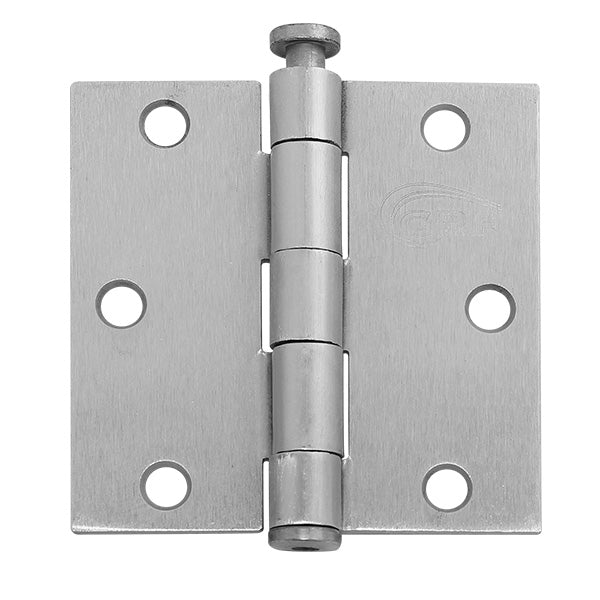

TBHSC77 3-1/2-Inch x 3-1/2-Inch Standard-Weight Plain-Bearing Hinge

Our TBHSC77 is a 3-1/2-inch x 3-1/2-inch full-mortise plain-bearing hinge. The commercial hinge catalog identifies this standard-weight, template-type model with a .123-inch gauge. Select it where the hardware schedule calls for this configuration, verifying the actual door and frame preparation before ordering.

TBHSC77 Specifications

  • Part number: TBHSC77.
  • Nominal size: 3-1/2 inches x 3-1/2 inches.
  • Gauge: .123 inch.
  • Weight classification: Standard weight.
  • Bearing type: Plain bearing.
  • Mounting: Full mortise.
  • Preparation: Template type.

Match the Preparation, Not Just the Height

Our TBHSC77 has one leaf recessed into the door and one recessed into the frame. Compare both mortises with the supplied hinge and exact template, checking leaf thickness, outline, hole positions, and clearances. The leaves should seat at the intended depth without forcing the door out of alignment.

Other 3-1/2-inch hinges can differ in gauge, corner profile, and screw pattern. A residential-weight or radius-corner hinge is not an automatic substitute. Check the complete hardware schedule and the actual opening before replacing existing components.

Available Finish Selections

  • US1: Matte Black.
  • US10A: As identified in the selector.
  • US10B: Antique Bronze Oiled.
  • US15: Satin Nickel.
  • US15A: Satin Nickel Blackened.
  • US26: Bright Chrome.
  • US26D: Satin Chrome.
  • US3: Bright Brass.
  • US32D: Satin Stainless Steel.
  • US4: Satin Brass.
  • US5: Antique Brass.
  • USP: Primed Gray.

Choose from the actual selections listed here. Confirm any specified base material separately rather than assuming every finish uses the same material construction.

Practical Applications

  • Scheduled plain-bearing openings: Use where TBHSC77 is the specified standard-weight model.
  • Replacement work: Match a verified 3-1/2-inch-square preparation and .123-inch leaf gauge.
  • Hardware updates: Coordinate a listed finish with the opening's other visible components.

Everyday example: A maintenance installer replaces worn hinges on a scheduled low-frequency door. They verify TBHSC77 on the hardware schedule, compare the leaves and screw layout with both mortises, and confirm the required hinge quantity. With the door supported, they fit the hinges and check clearances and reliable latching before returning the opening to use.

Installation Guidance

  • Check suitability: Review actual door weight, dimensions, frequency of use, hinge quantity, and attached hardware loads.
  • Review the exact template: Compare the supplied hinge with both the door and frame pockets and screw locations.
  • Inspect support: Repair damaged preparation or stripped fastening points and verify any required reinforcement.
  • Verify fasteners: The TBHSC77 template references #9 x 1-inch wood screws and #10-24 x 1/2-inch machine screws. Confirm supplied contents and suitability for the actual substrate.
  • Maintain alignment: Keep hinge axes consistent and avoid forcing misaligned leaves into place with screws.
  • Test operation: Check the full swing for rubbing, binding, uneven gaps, and reliable latch engagement.

Problems It Helps Address

  • A specified hinge is worn: Provides the identified TBHSC77 plain-bearing replacement configuration.
  • Preparation needs verification: Offers documented dimensions and a matching model template for comparison.
  • Visible hardware needs coordination: Offers the listed finish choices.

Selection and Care

Plain-bearing standard-weight construction is distinct from ball-bearing and heavy-weight construction. Confirm the complete hardware requirements before use on a closer-equipped, heavy, high-frequency, or rated opening. Nominal dimensions alone do not establish a universal capacity or complete-opening compliance.

Verify purchase quantity and fastening contents before ordering; catalog packing counts do not establish the number supplied by a selected purchase. Do not infer an NRP feature or warranty from the hinge size or finish.

Periodically inspect screw tightness, alignment, and hinge condition. Clean using methods appropriate to the supplied finish and address looseness or binding promptly rather than continuing to force the door.

Matching Product Reference

TBHSC77 Standard-Weight Hinge Template
