5000 & F5000 Series Rim Exit Device

Write A Review
Regular price $118.00
Sale price $118.00 Regular price
Unit price
-US32D-Satin Stainless Steel
-Alum
Ask a question

Ask a Question

* Required fields

Size guide Share

Usually Ships: 1-3 Business Days

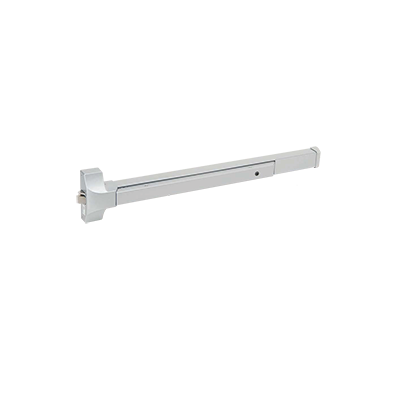

5000 & F5000 Series Rim Exit Devices

The Cal-Royal 5000 & F5000 Series Rim Exit Devices provide touch-bar operation for compatible commercial and institutional door openings. Grade 1 construction, a steel chassis, and a stainless steel latch bolt support demanding everyday use. Select the 5000 panic device or F5000 fire exit device to match the opening's requirements; the two configurations are not interchangeable for every application.

Practical Uses

Consider these rim exit devices for compatible doors in schools, hospitals, offices, and public buildings. They can be used on suitable single-door openings and properly configured pairs, subject to the required strike arrangement and complete opening preparation. The listed options are 5000 EO 36", 5000 EO 48", F5000 EO 36", and F5000 EO 48", in Alum or US32D satin stainless steel.

For a replacement project, compare the existing device, door width, handing requirements, mounting preparation, strike position, and any outside-access requirements before ordering. Do not assume that an existing trim, cylinder, strike, or hole pattern will fit the new device.

Installation and Replacement

Use the installation instructions for the selected model and the matching preparation templates. Verify the 1-3/4" door thickness and minimum 3-3/4" stile width listed for this series, along with the actual door width and mounting clearances. Confirm the strike arrangement, alignment, and any additional preparation before drilling. Wood and machine screws are included; thru-bolts are standard on fire-rated models.

After installation, check touch-bar operation, latch engagement, closing, and latching through repeated cycles. The non-handed center-hub design assists installation, but does not eliminate the need to verify the complete opening. For a fire-labeled opening, use the appropriate fire exit configuration and follow the manufacturer's listing and fastening requirements. Allen-key dogging is specified for non-fire-labeled devices only.

Problems It Helps Address

  • Worn exit hardware: Provides a replacement option where the device, strike, and door preparation are compatible.
  • Frequent daily use: ANSI A156.3 Grade 1 construction is intended for demanding commercial applications.
  • Uncertain latching from mismatched hardware: A correctly selected and aligned device-and-strike arrangement supports reliable latch engagement.
  • Different opening requirements: Separate panic and fire exit configurations help purchasers select the appropriate model rather than treating every exit device as equivalent.
  • Finish coordination: Alum and US32D satin stainless steel options provide two finish choices.

During a busy day, occupants can operate the touch bar as they move through the opening. A correctly fitted device should work with the door and closer so the door returns and latches without binding. Persistent sticking or poor latching calls for checking the entire opening, not simply replacing the bar.

Product Details

  • Series: Cal-Royal 5000 and F5000 rim exit devices
  • Listed configurations: 5000 EO 36", F5000 EO 36", 5000 EO 48", and F5000 EO 48"
  • Grade: ANSI A156.3, Grade 1 certified
  • Chassis: Steel
  • Latch bolt: Stainless steel with 3/4" throw
  • Door thickness: 1-3/4"
  • Minimum stile width: 3-3/4"
  • Handing: Non-handed center-hub design
  • Finishes: Alum and US32D satin stainless steel
  • Mounting hardware: Wood and machine screws; thru-bolts standard on fire-rated models
  • Dogging: Allen-key type standard on non-fire-labeled devices

Panic, Fire, and Accessibility Considerations

The existing specifications identify UL panic and fire exit listings, with F5000 stated for use on fire-labeled doors rated up to 3 hours. They also reference ADA, UL10C, and UBC 7-2-1997. Verify the selected model's current documentation, applicable listing, door assembly, and installation requirements for the project. Installing an exit device alone does not establish the rating or accessibility of the complete opening.

The existing series information also lists an optional antimicrobial coating on US32D and optional outside-trim arrangements. These are not shown as selectable options here; confirm the exact ordered configuration and package contents rather than assuming optional features or outside trim are included.

Installation Instructions

Use instructions that match the ordered model and size. The 5000EO36 document is specifically labeled for that configuration.

Preparation Templates

Use only the templates applicable to the selected device, strike, and outside-access configuration. A template link does not indicate that its associated accessory is included.

Catalog

View 5000 Series Catalog
