500PBF Door Closer (without cover)
Usually Ships: 1-3 Days

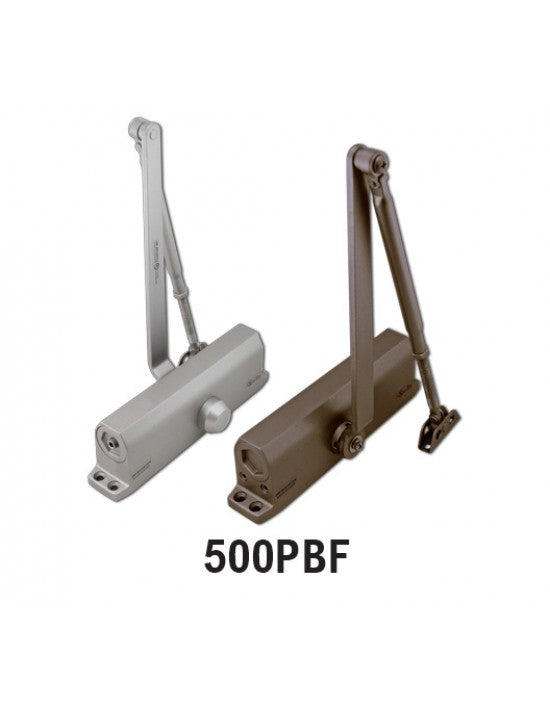

500PBF Adjustable Size 1–5 Grade 1 Door Closer, Without Cover
The Cal-Royal 500PBF Door Closer is an adjustable hydraulic closer for compatible interior doors in commercial buildings. The 500PBF offers size 1–5 spring adjustment, separate closing and latching speed controls, and standard adjustable back-check. This listing is supplied without a cover and identifies a parallel arm bracket as included.
Practical Uses
Consider the 500PBF for suitable interior openings in offices, retail spaces, hotels, and commercial or industrial buildings. Its adjustable spring range supports selection and setup for the actual opening, while its universal mounting-hole pattern offers a starting point for compatible new construction and replacement work.
Before replacing an existing closer, compare the full mounting template, arm arrangement, door and frame clearances, and required closing performance. A shared hole-spacing reference does not guarantee a direct replacement. Alum and Duro are the listed finish selections.
Installation and Replacement
Choose the correct mounting arrangement before drilling: regular arm, top jamb, or parallel arm. Use the matching template and verify arm clearance, opening angle, mounting surface, fasteners, and bracket requirements. The existing specifications identify standard size #4 mounting holes with a 9-1/16" reference; confirm the complete pattern.
Adjust spring power within the 1–5 range for the actual door and application. The listed door-weight range is 30–260 lb, but weight alone does not establish suitability. Tune the main closing sweep and final latching portion with their separate regulating valves, following the manufacturer's adjustment limits.
Adjust back-check for the opening conditions; it is not a substitute for a suitable door stop. After installation, test from several opening positions and verify controlled travel and reliable latching without excessive impact. Correct dragging hinges, binding seals, or strike misalignment rather than using additional spring power to mask the problem.
Problems It Helps Address
- Closing too quickly: Hydraulic speed regulation helps tune the main closing cycle.
- Inconsistent final latching: Separate latch-speed control and adjustable spring power support setup for a properly aligned opening.
- Rapid opening: Standard adjustable back-check provides opening resistance within the manufacturer's operating range.
- Different installation conditions: Three mounting templates support appropriate preparation for the selected arrangement.
- Worn interior closers: Offers a replacement option where the mounting and operating requirements match.
At a hotel corridor or office doorway, the door should return at a measured pace and latch behind the person passing through. The 500PBF lets the installer tune the main closing sweep separately from the final latch portion, while balancing opening effort with enough closing power for the complete opening.
Product Details
- Part number: 500PBF
- Type: Hydraulic door closer for compatible interior applications
- Performance: Factory tested to meet or exceed ANSI A156.4 Grade 1, as stated in the existing specifications
- Spring sizing: Fully adjustable sizes 1–5
- Listed door-weight range: 30–260 lb, subject to opening and mounting requirements
- Closing controls: Separate closing and latching speed regulating valves
- Back-check: Standard adjustable valve
- Mounting arrangements: Regular arm, top jamb, or parallel arm, subject to the appropriate preparation
- Mounting reference: Standard size #4 mounting holes; 9-1/16" reference
- Included bracket: Parallel arm bracket, as identified in the existing listing
- Cover: Not included with this listing
- Listed finishes: Alum and Duro
Package Differences and Optional Covers
500PBF and N500PBF packaging differ. The existing specifications describe the separate N500PBF package as including a 500COV slim plastic cover, 970 sex bolts, and 505 parallel arm bracket. Do not assume that covered-model package is supplied with this 500PBF without-cover listing. Confirm the remaining fasteners and package contents before installation.
The series lists an optional 500COV slim plastic cover, measuring 2" W x 3" H x 10-5/8" L, and an optional 500COV 32D stainless steel full cover. These are not included as standard here; verify fit and the exact cover configuration before ordering separately.
Barrier-Free Setup and Reliable Latching
The existing series specifications identify the 500PBF for barrier-free ADA interior-door applications. Verify operating force and reliable closing together on the complete installed opening. A reduced-force setting may not provide sufficient power to close and latch under every condition, and the model designation alone does not establish accessibility compliance for every installation.
Installation Instructions
500 Series Door Closer Installation Instructions
Mounting Templates
- 500 Series Regular Arm Installation Template
- 500 Series Parallel Arm Installation Template
- 500 Series Top Jamb Installation Template
