A9800 x NESC9800
Usually Ships: 1-3 Business Days

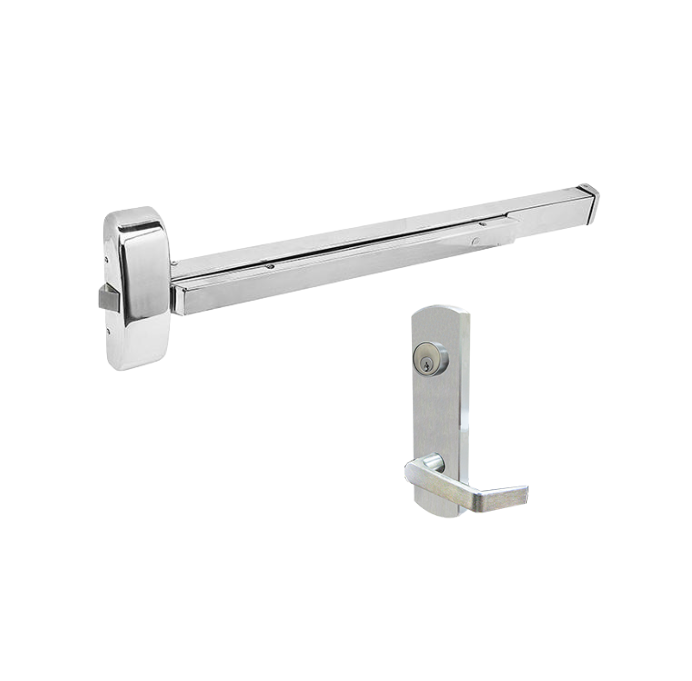

A9800 x NESC9800 Grade 1 Rim Exit Device with Rigid Lever Trim
The Cal-Royal A9800 x NESC9800 pairs a Grade 1 rim exit device with a rigid escutcheon lever trim for compatible commercial and institutional door openings. Its ANSI Function 08 classroom operation lets a key lock or unlock the outside lever, while occupants operate the exit device from inside. The trim is a non-clutch design, not a freewheeling lever.
Practical Uses
Consider the A9800 x NESC9800 for suitable school, university, office, healthcare, or multi-unit facility openings where keyed control of outside entry is needed alongside inside exit operation. Classroom function is useful where staff want to leave the outside lever unlocked during permitted access periods and lock it with a key afterward. It should not be confused with a function requiring a key for every entry.
For replacement work, compare the existing exit device, trim preparation, strike arrangement, door width, and keying requirements before ordering. The escutcheon covers a standard 161 cutout, but coverage alone does not establish that the existing holes or complete preparation will match.
Installation and Replacement
Use the A9800 device instructions together with the matching NESC98-series trim installation and preparation documents. Check the 1-3/4" door thickness described for this combination, the required stile width, mounting clearance, and strike position against the current templates. Do not rely on the previous description's minimum-stile figure without confirming the complete device-and-trim arrangement.
The device is described as non-handed and field-reversible; follow the trim handing instructions for the actual installation. Confirm the cylinder and keying before fitting. After installation, test inside touch-bar operation, key locking and unlocking of the outside lever, latch engagement, and repeated closing and latching. Hex-key dogging is specified for non-fire-rated devices only.
Problems It Helps Address
- Keyed control of outside access: Classroom function allows a key to lock or unlock the outside lever.
- Worn exit hardware and trim: Offers a coordinated replacement option where the device, trim, strike, and preparation are compatible.
- Demanding daily traffic: ANSI/BHMA A156.3 Grade 1 construction supports commercial and institutional use.
- Existing 161 cutout coverage: The escutcheon can cover the standard cutout, subject to matching the full preparation.
- Finish coordination: The described pairing uses a US32D satin stainless steel device with US26D satin chrome trim.
At the start of the day, staff can unlock the outside lever for permitted entry. Later, a key can lock that lever again while occupants continue to use the inside exit device. A correctly fitted assembly should work with the door and closer so it closes and latches without binding; persistent sticking calls for checking the complete opening.
Product Details
- Part numbers: A9800 rim exit device x NESC9800 rigid escutcheon lever trim
- Grade: ANSI/BHMA A156.3, Grade 1
- Outside function: ANSI Function 08, classroom; key locks or unlocks the outside lever
- Trim mechanism: Rigid, non-clutch
- Escutcheon plate: 2-3/4" wide x 10-1/4" high
- Lever length: 4-3/4"
- Cutout coverage: Standard 161 cutout
- Cylinder described as included: 6-pin mortise cylinder with Schlage C keyway
- Door thickness described: 1-3/4"; verify full preparation and stile requirements
- Latch bolt: Stainless steel, 3/4" throw, with anti-pick feature as stated in the existing description
- Handing: Non-handed / field-reversible, following the applicable instructions
- Described finish pairing: US32D satin stainless steel device with US26D satin chrome trim
- Dogging: Hex-key type on non-fire-rated models
Configuration and Performance Considerations
The previous series information describes 24", 32", 36", and 48" device lengths and a separate fire exit configuration identified as F9800. This listing does not present length or fire-rating selectors. Confirm the supplied length, finish pairing, cylinder/keying, and exact package contents before ordering rather than assuming every series option is included.
The existing description references a fire exit version for up to 3-hour labeled doors, UL10C, and UBC 7-2-1997. Those references do not establish that the A9800 combination offered here is fire rated. Verify the exact model's current listing and the complete door assembly requirements for fire-labeled openings.
The existing description also references ADA accessibility and a limited lifetime warranty. Confirm the installed opening's accessibility requirements and the manufacturer's applicable warranty terms. Neither accessibility nor a complete opening's rating is established by the device description alone.
Installation Instructions and Trim Template
- A9800 Rim Exit Device Installation Instructions
- NESC98 Series Trim Installation and Handing Instructions
- NESC98 Escutcheon Lever Trim Template
Check that the series documents match the supplied trim and device before preparing the door.
