ADB-701 Automatic Door Bottom
ADB-701 Heavy-Duty Automatic Door Bottom with Neoprene Seal

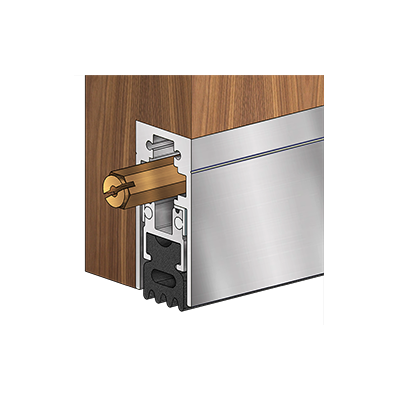

Our ADB-701 Automatic Door Bottom brings a neoprene seal into contact with the floor when a compatible door closes. Designed for surface-mounted or semi-mortised installation on suitable wood or hollow-metal doors, the ADB-701 uses an adjustable actuating plunger to set the seal contact for the opening.
Practical Uses
- Closing the bottom-door gap: Provides an adjustable sealing contact at the floor when correctly installed and set.
- Retrofit projects: Surface mounting offers an option where the door and opening permit a face-mounted unit.
- Recessed installations: Semi-mortised mounting is available where the door construction and approved preparation accommodate the body.
- Replacement work: Match the body dimensions, mounting method, seal travel, and plunger location before replacing an existing automatic bottom.
Everyday example: A meeting-room door has a noticeable gap beneath it. The installer measures the opening, checks the floor across the full swing, and fits an appropriately sized ADB-701. With the door closed, the plunger is adjusted until the neoprene seal meets the floor without excessive compression. The door is then cycled to confirm the seal releases and the door moves freely.
Installation and Adjustment
Measure for the mounting method: For surface mounting, our installation guide calls for a unit approximately 1/32 inch shorter than the door opening and a 1/8-inch beveled cut as shown in the guide. For semi-mortised mounting, the unit length is the door width less 1/32 inch. Check the actual opening and complete illustrated instructions before cutting.
Trim the correct end: Cut only from the end without the plunger. Maintain the required clearance from the internal set screw and follow the supplied model's maximum trimming limits. Do not assume the full unit can be shortened by an arbitrary amount.
Position and secure: Install on the push side of the door, keeping the aluminum body parallel to the floor. The guide identifies 3/8 inch as the ideal clearance between the unit and finished floor. Confirm the actual door gap and required seal travel before fastening.
Set the plunger: Turn the actuating plunger clockwise or counterclockwise until the gasket contacts the floor when the door closes. In a surface-mounted arrangement the plunger contacts the stop; in a semi-mortised arrangement it contacts the rabbet. Install the end plates and test for consistent contact and free movement.
Problems It Helps Address
- An unsealed gap under a closed door: Brings the neoprene insert down to the receiving surface within the available travel.
- Seal contact needs adjustment: The actuating plunger lets the installer set contact for the actual opening.
- Different mounting requirements: Supports either surface or semi-mortised installation when suitable for the door.
Dimensions and Options
- Part number: ADB-701
- Application: Suitable wood or hollow-metal doors
- Mounting: Surface mounted or semi-mortised
- Body width: 15/16 inch
- Body height: 1-7/8 inches
- Maximum drop: 7/8 inch; verify the actual gap and installation clearances
- Length options: 36 inches and 48 inches
- AN finish: Mill-finish aluminum with neoprene insert
- DN finish: Dark bronze anodized aluminum with neoprene insert
Package Contents
- One automatic door-bottom unit
- End plates, reference EP701
- #8 x 1-1/2-inch Truss PHSMS screws, reference SPH815
- #8 x 1-1/2-inch Truss FHSMS screws, reference SFH815
Verify the supplied hardware and suitable fastening method for the door material before installation. Repair weak mounting areas or door-alignment problems rather than relying on the seal to correct them.
Selection and Maintenance
The ADB-701 is a door-bottom seal, not a door closer or structural repair. Floor level, threshold profile, door alignment, and adjustment affect sealing contact. No specific acoustic rating, smoke rating, weather-exposure rating, or complete-opening compliance is asserted here.
For a fire-labeled door, have any mortise preparation performed through the door manufacturer as required by the installation guide, and confirm the permitted complete assembly before alteration. Inspect the seal, plunger, fasteners, and end plates during routine maintenance; readjust contact if the opening changes.
Installation Instructions
ADB-701 Surface-Mounted and Semi-Mortised Installation Guide
