ADB-703 Automatic Door Bottom
ADB-703 Light-Duty Mortised Automatic Door Bottom with Vinyl Seal

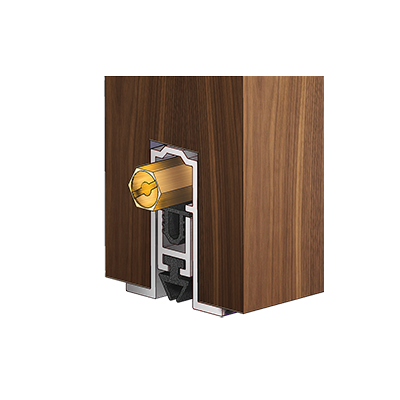

Our ADB-703 Automatic Door Bottom places a vinyl sealing insert in a concealed, mortised installation at the bottom of a suitable wood door. The light-duty ADB-703 uses an adjustable actuating plunger to bring the seal into contact with the floor or compatible threshold when the door closes.
Practical Uses
- Concealed lower-door sealing: Recesses the body into the door bottom rather than mounting a full housing on the face.
- Suitable wood-door projects: Consider where the door construction allows the required bottom mortise and secure fastening.
- Matching replacement work: Compare the existing recess, unit dimensions, length, end details, and seal travel before selecting a replacement.
Everyday example: A wood office door is being prepared with a recessed bottom seal. Before machining, the installer checks the actual ADB-703 body and confirms the door has sufficient material for the mortise. Once installed, the plunger is adjusted so the vinyl insert contacts the receiving surface with the door closed and releases as the door opens.
Installation and Adjustment
Prepare the wood door: Our installation guide calls for removing the door from its hinges and machining the bottom mortise to the actual unit dimensions. Confirm the door construction, available material, reinforcement needs, and permitted preparation before removing material. Do not size the recess from the product's overall length alone.
Measure before cutting: Establish the required length from the actual door and follow the guide's illustrated end clearances. Trim only from the end opposite the actuating plunger. Preserve the specified set-screw clearance and stay within the supplied unit's permitted cut-down limits.
Orient and secure: Fit the unit with the plunger toward the hinge-jamb side. Secure it with suitable screws and sound mounting material. The guide identifies 3/8 inch as the ideal clearance between the unit and finished floor. Check the actual door gap and threshold profile before finalizing the installation.
Adjust the contact: Turn the actuating plunger clockwise or counterclockwise until the seal contacts the finished floor or threshold with the door closed. In the mortised arrangement, the plunger contacts the rabbet. Install the end plates, rehang and test the door, and check consistent contact without binding or excessive seal pressure.
Problems It Helps Address
- A closed door needs bottom contact: Brings the vinyl insert to the receiving surface within the available travel.
- Face-mounted hardware is not preferred: Provides a concealed mortised arrangement when the door supports it.
- Contact needs adjustment: The plunger lets the installer set the closed-door sealing position.
Product Details
- Part number: ADB-703
- Duty: Light duty
- Application: Suitable wood doors
- Mounting: Mortised / concealed in the door bottom
- Seal: Vinyl insert
- Maximum drop: 3/4 inch; verify actual gap and installation clearance
- Length options: 36 inches and 48 inches
- AV finish: Mill-finish aluminum with vinyl insert
- DV finish: Dark bronze anodized aluminum with vinyl insert
Fit check: Verify the supplied body's width, height, and end preparation before routing the door or matching an existing recess. Confirm the exact unit revision and use actual hardware measurements for machining.
Package Contents
- One automatic door-bottom unit
- #6 x 3/4-inch PPHSDS screws, reference SPH675
- End plates, reference EP703
Check the supplied fasteners and suitable attachment depth for the door construction. A new seal does not repair stripped mounting areas, a warped door, or hinge sag.
Opening Requirements and Maintenance
For fire-labeled doors, the installation guide requires mortise preparation through the door manufacturer. Confirm the permitted door preparation and complete assembly requirements before alteration. Any required acoustic, smoke, or other performance must be established for the specified opening rather than inferred from the presence of a bottom seal.
Inspect the vinyl insert, plunger, fastening, and end plates during routine maintenance. Recheck contact after changes to the floor, threshold, hinges, or door alignment, and keep the receiving surface clear of debris.
