ADB-704 Automatic Door Bottom

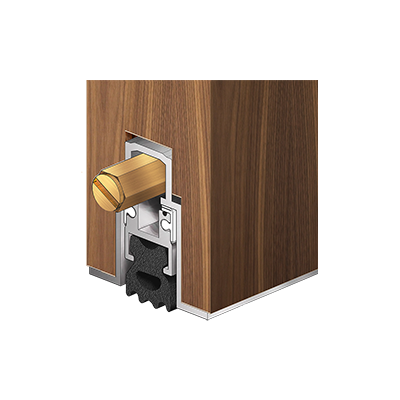

ADB-704 Heavy-Duty Mortised Automatic Door Bottom with Neoprene Seal
Our ADB-704 Automatic Door Bottom provides a neoprene sealing insert in a concealed, mortised installation for suitable wood doors. This heavy-duty model uses an adjustable actuating plunger to bring the seal to the finished floor or compatible threshold when the door closes.
Practical Uses
- Concealed bottom-door sealing: Recesses the housing into the bottom of the door rather than mounting the full body on the face.
- Prepared wood-door openings: Consider where the door has sufficient material and the required mortise is permitted.
- Matching replacements: Compare the actual recess, body dimensions, seal travel, and end preparation before choosing a replacement.
Everyday example: A wood meeting-room door is being fitted with a recessed neoprene bottom seal. The installer checks the supplied ADB-704 and confirms the door can accommodate its mortise before machining. After installation, the plunger is adjusted until the seal contacts the threshold with the door closed, then the door is cycled to check contact and release without dragging.
Installation and Adjustment
Prepare the door correctly: Our installation guide calls for removing the door from its hinges and machining the bottom recess to the actual unit dimensions. Confirm the door construction, remaining material, reinforcement, and any restrictions before cutting. Verify the exact body's width and height rather than assuming another automatic bottom shares its preparation.
Measure and trim: Establish the finished unit length from the actual door, following the illustrated end-clearance and trimming instructions. Cut only from the end opposite the actuating plunger. Maintain the specified set-screw clearance and stay within the supplied unit's permitted cut-down limits.
Orient and fasten: Install with the plunger toward the hinge-jamb side. Secure the unit to suitable material using the appropriate supplied screws. The guide identifies 3/8 inch as the ideal clearance between the unit and finished floor. Check that the actual gap and receiving surface are compatible with the available travel.
Set contact and test: Turn the actuating plunger clockwise or counterclockwise until the neoprene seal contacts the finished floor or threshold with the door closed. In a mortised arrangement the plunger contacts the rabbet. Fit the end plates and verify consistent contact, reliable release, and free door movement through repeated cycles.
Problems It Helps Address
- An open gap below a closed door: Brings the neoprene insert to the receiving surface within its available travel.
- A concealed installation is preferred: Fits within a suitable bottom mortise rather than projecting as a face-mounted housing.
- The seal needs adjustment: The plunger lets the installer establish contact for the actual opening.
Product Details
- Part number: ADB-704
- Duty: Heavy duty
- Application: Suitable wood doors
- Mounting: Mortised / concealed
- Seal: Neoprene insert
- Maximum drop: 7/8 inch; verify actual gap and installation clearance
- Length options: 36 inches and 48 inches
- AN finish: Mill-finish aluminum with neoprene insert
- DN finish: Dark bronze anodized aluminum with neoprene insert
Replacement fit: Confirm the actual body's dimensions, revision, and required mortise before ordering for an existing recess or machining a new one. Matching length alone does not establish interchangeability.
Package Contents
- One automatic door-bottom unit
- #6 x 3/4-inch PPHSDS screws, reference SPH675
- End plates, reference EP704
Verify the supplied fasteners and suitable attachment depth for the actual door. Repair damaged mounting material or alignment problems before fitting the seal.
Opening Requirements and Maintenance
For fire-labeled doors, the installation guide requires mortise preparation through the door manufacturer. Confirm the permitted complete assembly and preparation before alteration. Any required acoustic, smoke, or other performance must be verified for the specified opening rather than inferred from this component alone.
Inspect the neoprene insert, plunger, fasteners, and end plates during routine maintenance. Keep the receiving surface clean and recheck adjustment after changes to the floor, threshold, hinges, or door alignment. This is a bottom seal, not a closer or a repair for a sagging door.
