CAL-ROYAL CB160 Heavy Duty Deadbolt

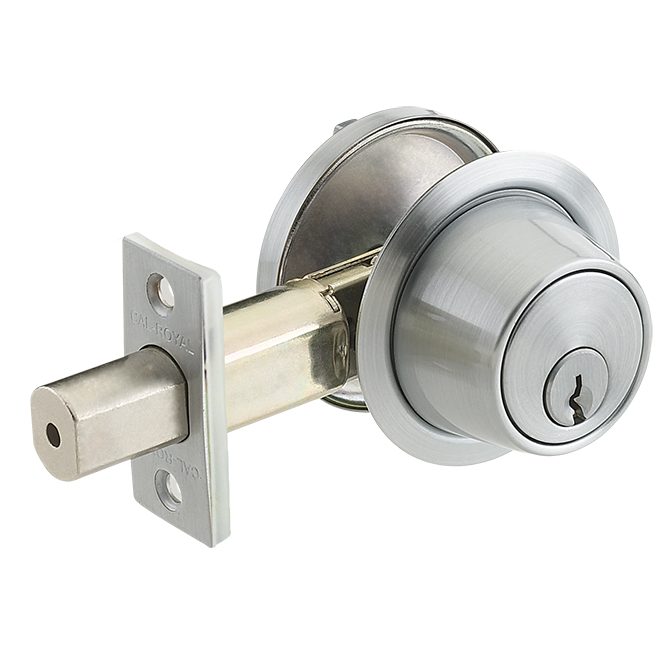

Cal-Royal CB160 Heavy Duty Deadbolt
Maximum Security. Built to Last.
The Cal-Royal CB160 Heavy Duty Deadbolt is engineered for superior strength and durability, making it the ideal choice for commercial and institutional applications. Designed to withstand high-traffic environments, this deadbolt offers uncompromising security and long-term reliability.
Key Selling Points
✅ Grade 1 ANSI/BHMA Certified – Meets the highest standards for security and performance.
✅ Heavy-Duty Construction – Solid brass or steel components for maximum strength.
✅ 1" Throw Deadbolt – Hardened steel insert resists sawing and forced entry.
✅ Universal Fit – Compatible with doors 1-3/8" to 1-3/4" thick.
✅ Backset Options – Standard 2-3/4" backset; optional 2-3/8".
✅ Cylinder Options – 5 or 6-pin solid brass “Schlage C” keyway; interchangeable core available.
✅ Architectural Finishes – US26D Satin Chrome, US32D Satin Stainless, US3 Polished Brass, US4 Satin Brass, US10B Oil Rubbed Bronze.
✅ Lifetime Warranty – Backed by Cal Royal’s trusted guarantee.
Specifications Table
| Feature | Details |
|---|---|
| Model | CB160 |
| Brand | Cal Royal Hardware |
| Function | Heavy Duty Deadbolt |
| Grade | ANSI/BHMA Grade 1 |
| Door Thickness | 1-3/8" to 1-3/4" |
| Backset | 2-3/4" (standard), 2-3/8" (optional) |
| Deadbolt Throw | 1" with hardened steel insert |
| Cylinder | 5 or 6-pin solid brass “Schlage C” keyway |
| Core Options | Interchangeable core (SFIC compatible) |
| Finishes Available | US26D Satin Chrome, US32D Satin Stainless, US3 Polished Brass, US4 Satin Brass, US10B Oil Rubbed Bronze |
| Compliance | ADA Compliant |
| Warranty | Limited Lifetime |
