RL Pioneer Series Lock

Regular price $85.50
Sale price $85.50 Regular price
Unit price
US26D-Satin Chrome
US10B-Antique Bronze Oiled
US15-Satin Nickel
US26-Bright Chrome
US4-Satin Brass
Ask a question

Ask a Question

* Required fields

 Size guide Share
Usually Ships: 1-3 Business Days

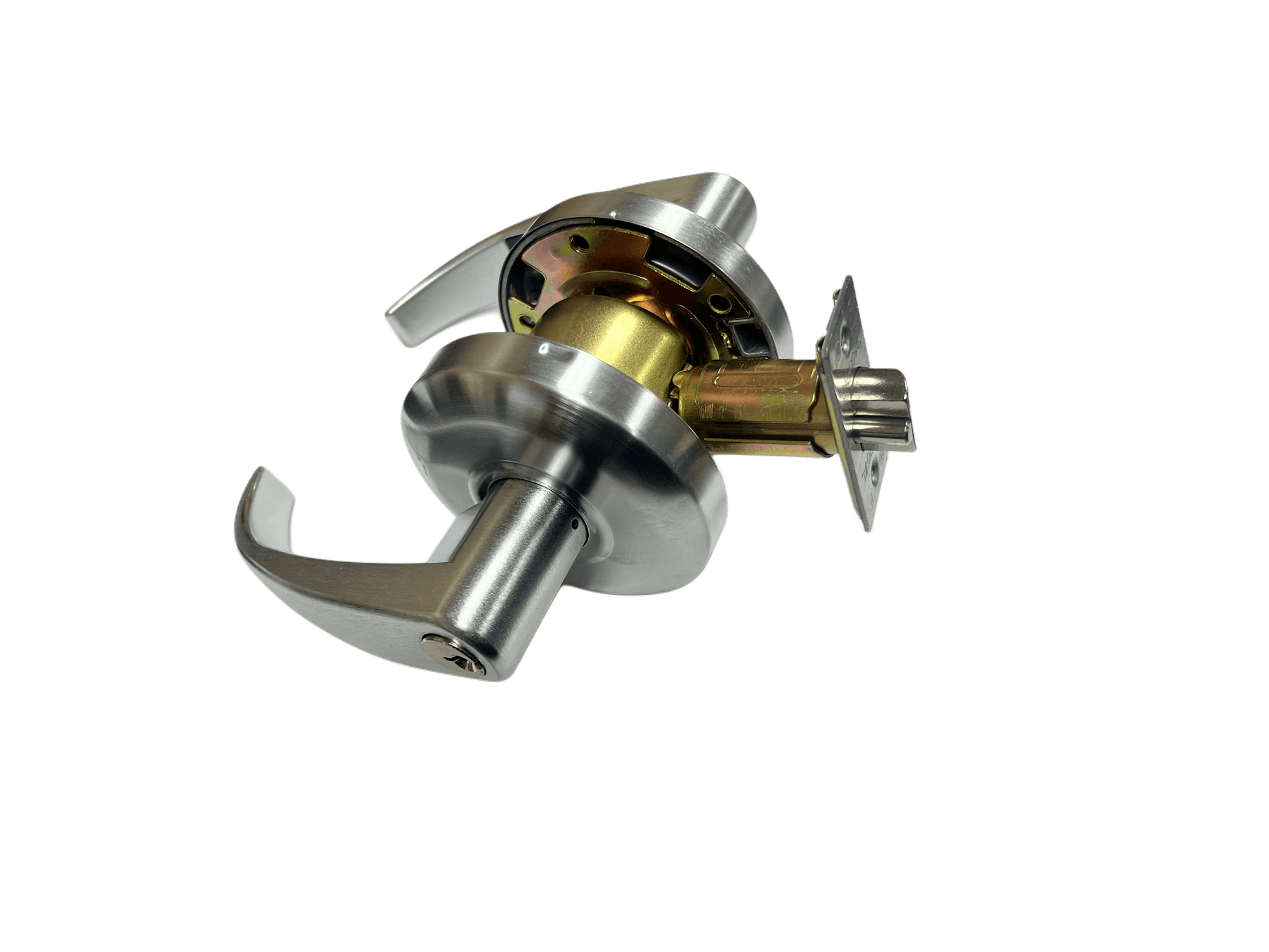

Cal-Royal RL Pioneer Series Lock – Grade 2 Commercial Lever Lockset

Enhance your building’s security with the Cal-Royal RL Pioneer Series Lock—engineered for high-traffic environments and built to meet ANSI Grade 2 standards. Ideal for commercial, institutional, and residential applications.

Product Features:

  • ANSI/BHMA Grade 2 Certified – Tested for over 400,000 cycles for long-lasting durability.
  • ADA Compliant – Easy-to-operate lever design meets accessibility standards.
  • Heavy-Duty Cylindrical Lockset – Built for performance in schools, offices, and public buildings.
  • Clutch & Non-Clutch Options – Choose SL (non-clutch) or CSL (clutch) for added security.
  • Interchangeable Core Compatible – Accepts 7-pin cores from BEST®, FALCON®, and ARROW®.
  • UL Listed – 3-Hour Fire Rated – Certified for use on fire-rated doors.
  • Flexible Backset Options – Available in 2-3/8”, 2-3/4”, 3-3/4”, and 5” backsets.

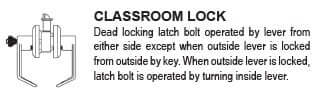

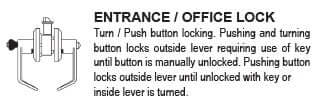

  • Multiple Functions Available – Entrance, passage, privacy, and classroom functions.
  • Durable Finishes – Satin Chrome (US26D), Polished Brass (US3), Satin Nickel (US15), and more.
  • Low Maintenance – Coil compression springs and individual lever springs reduce wear and sagging.

Ideal For:

  • Commercial buildings
  • Schools and universities
  • Hospitals and healthcare facilities
  • Multi-family housing
  • Government and public buildings





Features

  • APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
  • DOOR RANGES 1 ⅜” to 1 ¾” thickness doors.
  • BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.
  • LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
  • LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.
  • ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
  • EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
  • KEYING 6-pin “C” keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
  • CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
  • CLUTCH Clutch available on all keyed locks and privacy functions. Prefix“C” before part number.
  • INTERCHANGEABLE CORE Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
  • STRIKES ASA strike standard, “T” and full lip strike available on request.
  • TACTILE & LEAD LINING available upon request.
Templates

Installation Instructions

Catalog Pages
