Cal Royal Calypso CAL Series Lockset
Calypso CAL Series Grade 1 Cylindrical Lever Lockset
Usually Ships: 1-3 Days

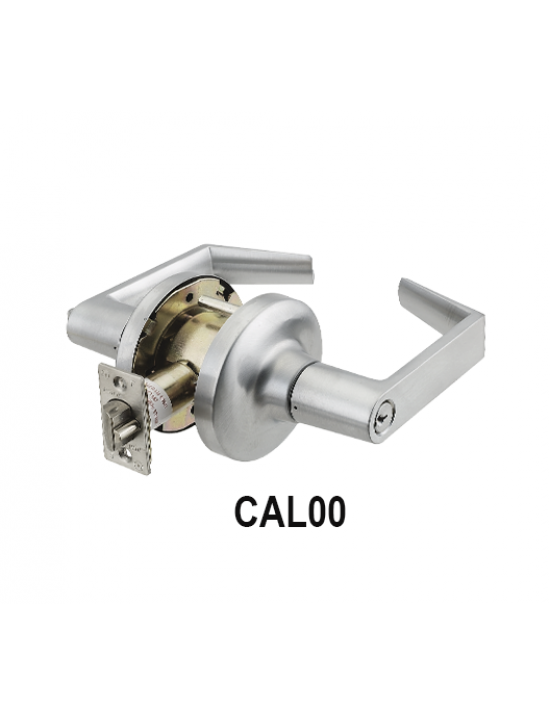

The Cal-Royal Calypso CAL Series is an extra-heavy-duty cylindrical leverset with a clutch mechanism and fixed thru-bolt mounting. Choose CAL00 Entrance, CAL03 Classroom, CAL05 Storeroom, CAL20 Privacy, or CAL30 Passage to match the way the room needs to operate. The CAL lever design is offered here in US26D-Satin Chrome.
Practical Uses and Function Selection

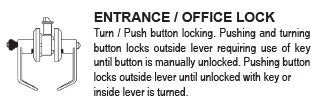

- CAL00 / 00-Entrance, ANSI F109: Push/turn-button locking inside. Pushing the button locks the outside lever until released with a key or by turning the inside lever. Pushing and turning the button maintains outside locking until the button is manually unlocked. Useful for individually controlled offices.

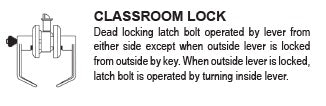

- CAL03 / 03-Classroom, ANSI F84: The outside key locks or unlocks the outside lever. When the outside lever is locked, turning the inside lever retracts the latch. Useful where outside access needs key control without an inside locking button.
- CAL05 / 05-Storeroom, ANSI F86: The outside lever remains fixed; the outside key or inside lever retracts the latch. Useful for supply rooms where outside entry should remain key-controlled.
- CAL20 / 20-Privacy, ANSI F76: The inside push button locks the outside lever, with emergency release outside. Turning the inside lever or closing the door releases the button. This is privacy hardware, not a keyed security function.
- CAL30 / 30-Passage, ANSI F75: Both levers operate the latch at all times, without locking. Useful for connecting rooms and other non-locking openings.
Everyday example: An office suite can use CAL00 for a private office, CAL05 for a supply room, and CAL30 for a shared connecting doorway. Matching levers keep the appearance consistent while each door's function fits daily use.
Installation and Replacement
Measure the opening: Verify a 1-3/8" to 2" thick door, the actual latch backset, faceplate, strike preparation, and mounting holes. The standard backset is 2-3/4"; optional backsets require the appropriate latch/configuration and should not be assumed to be adjustable settings of the supplied standard latch.
Check fixed thru-bolt preparation: The current CAL / MHM / SAN template shows a 2-1/8" cross-bore, 1" latch bore, and two 5/16" thru-bolt holes on 2-3/4" centers. Compare the entire template with an existing preparation before drilling. Verify printed scale and use the manufacturer's instructions for the exact assembly.
Adjust for door thickness: Follow the manual's outside-assembly adjustment and make sure the latch tail engages the retractor correctly. Install the latch with its bevel facing the closing direction, seat the faceplate and strike flush as instructed, and secure the mounting plate, rose liner, cover, and lever. Confirm the lever catch fully engages.
Test the selected function: Check latch movement and inside operation with the door open before testing it closed. Then verify strike alignment, outside locking behavior, and privacy emergency release where applicable. On deadlatching configurations, confirm the auxiliary plunger bears correctly on the strike rather than entering the latch opening. Repair door sag or binding separately.
Problems It Helps Address
- Access behavior that does not suit the room: Five distinct functions let you choose entrance, classroom, storeroom, privacy, or passage operation.
- Lever sag during repeated use: Individual springs on each side help maintain lever return.
- Mounting uncertainty: Fixed thru-bolt dimensions and model-specific instructions help identify preparation differences before replacement.
- Key-system coordination: Standard keyed functions use a 6-pin C-keyway cylinder; other cylinders and IC versions require the correct separate configuration.
The lockset does not close the door, correct a damaged frame, or guarantee protection against forced entry. Confirm the exact assembly and opening requirements for accessibility-sensitive, fire-rated, or exit applications.
Product Details
- Series/design: Calypso CAL cylindrical lever hardware
- Offered part numbers: CAL00, CAL03, CAL05, CAL20, and CAL30
- Mechanism and mounting: Manufacturer identifies clutch mechanism and fixed thru-bolt installation
- Performance: Manufacturer specifies ANSI/BHMA A156.2 Series 4000 Grade 1 requirements and performance exceeding 1,000,000 cycles
- Lever: Listed 5" handle with 3/8" return
- Door thickness: 1-3/8" to 2"
- Backset: 2-3/4" standard; 2-3/8", 3-3/4", and 5" optional
- Standard latch: Listed 1/2"-throw solid brass, reversible for right- or left-hand applications
- Faceplate: 2-1/4" x 1-1/8", for flat or beveled doors with 1/8" bevel in 2"; specifications also list an optional 2-3/8"-backset faceplate configuration
- Strike: ASA standard; T and full-lip strikes available on request
- Exposed trim: Wrought brass, bronze, or stainless steel components; zinc-cast levers plated to match the trim finish
- Standard keyed cylinder: Solid-brass 6-pin C keyway; not applicable to privacy or passage selections
- Fire reference: Manufacturer identifies a UL-listed three-hour-rated series deadlatch configuration. Verify the labels, function, latch, and approved complete assembly for the specific opening.
- Offered finish: US26D-Satin Chrome
Optional Configurations
Interchangeable core: Properly ordered IC-prefixed keyed models accept compatible 6- or 7-pin BEST, FALCON, and ARROW cores. Core inclusion, combinated or uncombinated setup, construction cores, control keys, and master keying must be confirmed separately. A standard CAL selection does not automatically include an interchangeable-core housing or core.
Other keyways/cylinders: Series specifications list Schlage E and C-K; Russwin D1–D4; Corbin 59/60; Corbin-Russwin L4; Sargent LA/LB/LC; Falcon/Weiser E; Arrow A; Yale 8 and GA; Kwikset; and compatible Medeco, Assa, Kaba, and Cal-Royal HSK configurations. Confirm the required factory configuration before ordering.
Special latch and other options: A 2-3/4"-backset anti-friction latch with 3/4" throw for applicable paired fire-door arrangements is optional, not the standard 1/2"-throw latch. Tactile warning and lead lining are available on request. Other catalog functions, finishes, and lever designs are not additional selections on this page.
Existing Manufacturer Reference Images
The retained logos include warranty, accessibility, certification, and Buy American Act references. Confirm current documentation and the scope of each claim for the exact configuration and complete installation.
