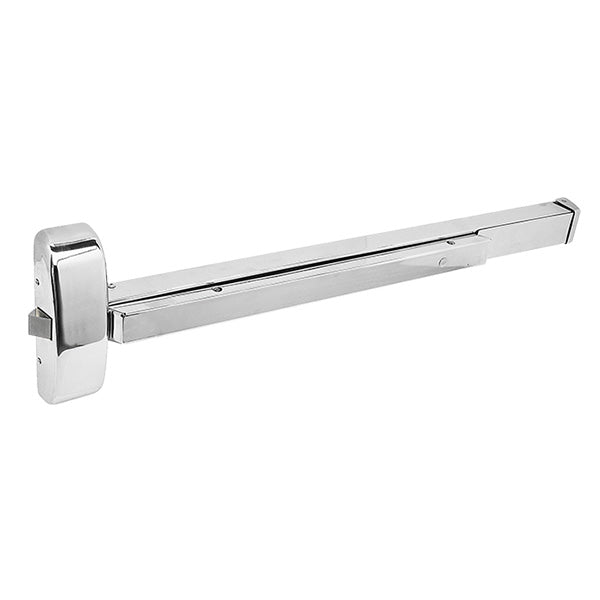

-US32-Bright Stainless Steel

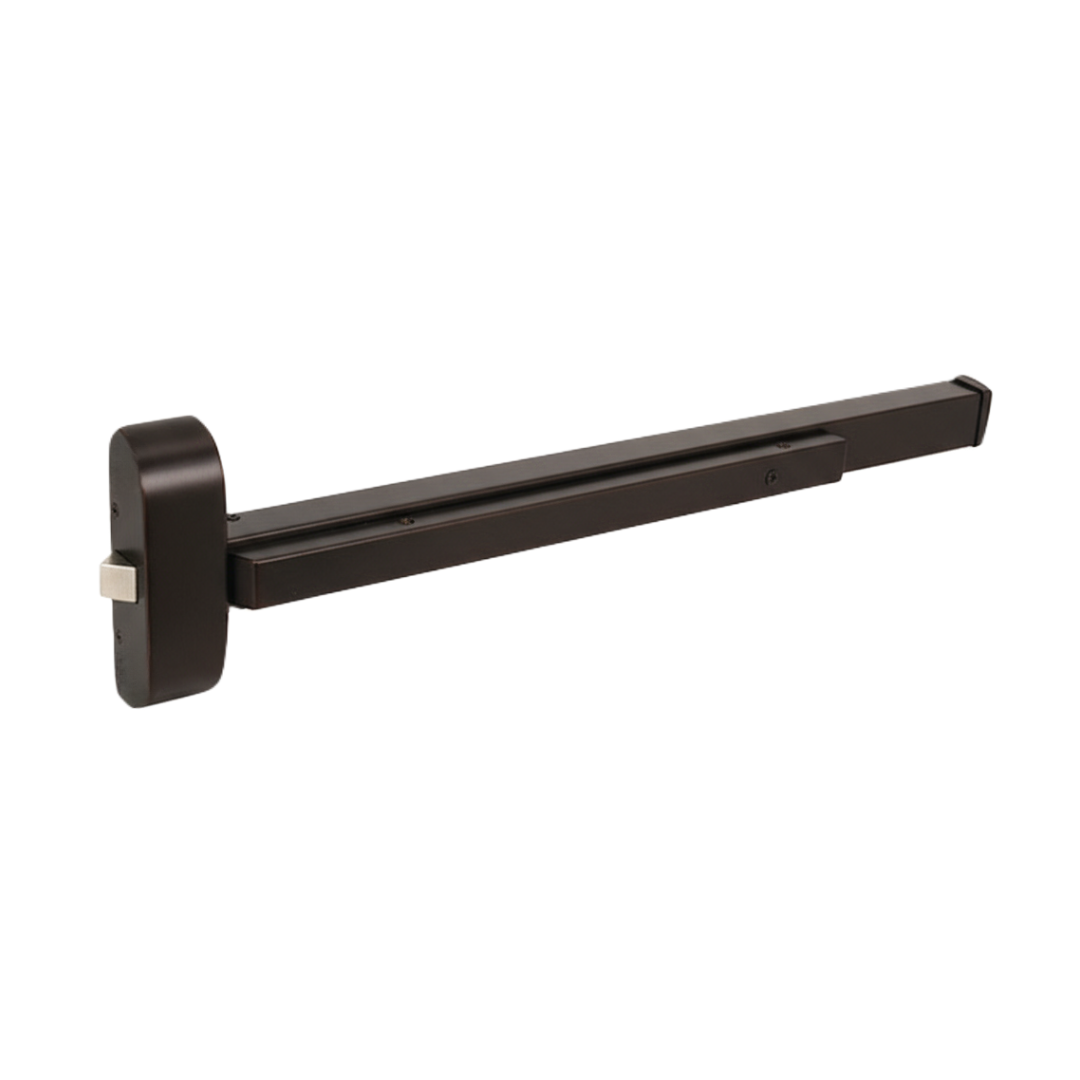

-US10B-Antique Bronze Oiled
-US3-Bright Brass

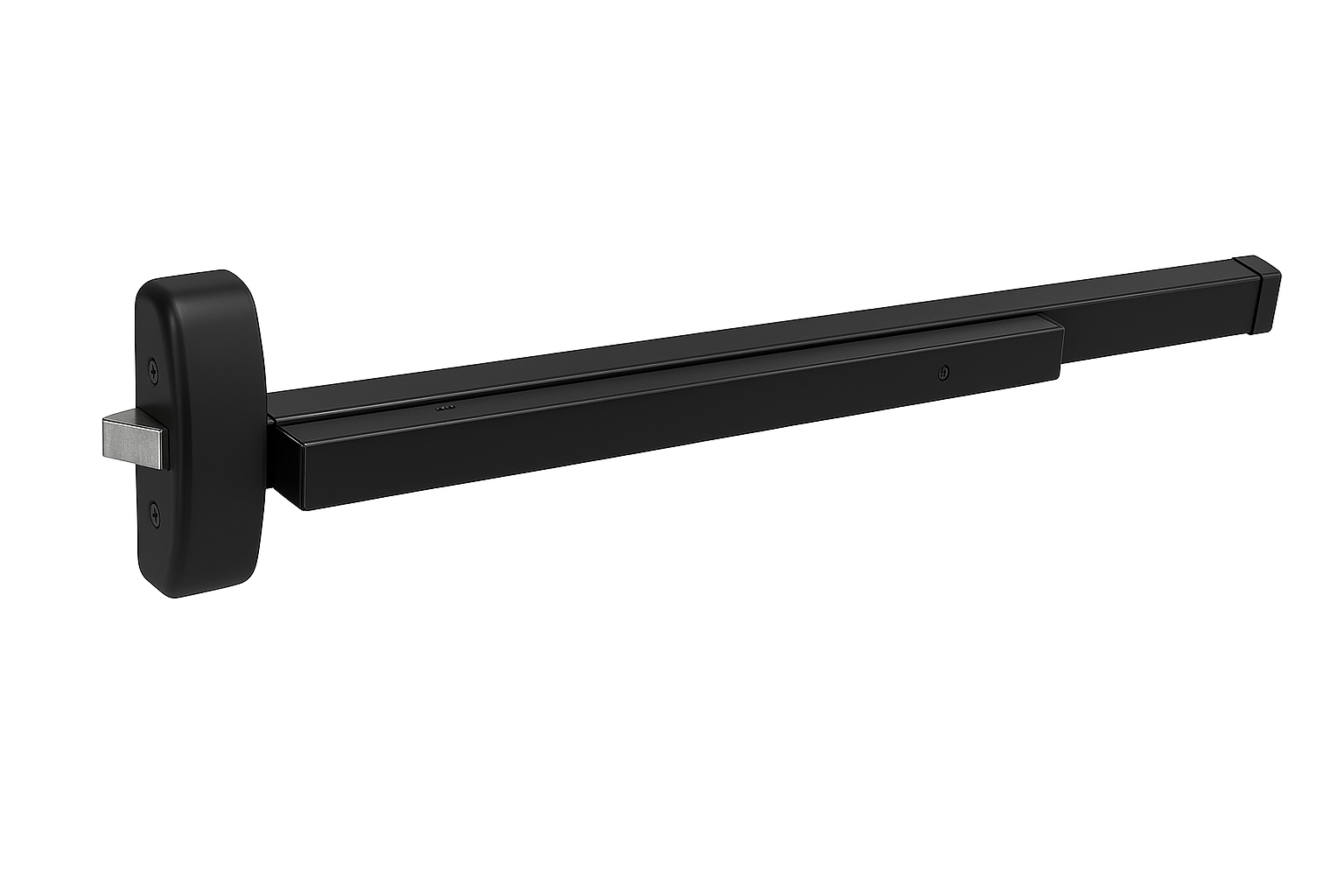

-US1-Matte Black
-US4-Satin Brass
Ask a question

Ask a Question

* Required fields

Size guide Share
Usually Ships: 1-3 Business Days

A9800 & AF9800 Series Rim Exit Devices

The Cal-Royal A9800 & AF9800 Series Rim Exit Devices provide Grade 1 touch-bar hardware for compatible commercial door openings. Choose the A9800 panic device or AF9800 fire exit device to match the opening's requirements. This listing is for rim devices, not the vertical rod designs also offered in the wider series.

Practical Uses

Consider these devices for suitable single doors and properly configured pairs in commercial and institutional buildings. The listed lengths are 24", 32", and 36", with separate Fire Rated and Non-Fire Rated selections. Confirm actual door width, preparation, and the manufacturer's sizing requirements before choosing a length.

The existing specifications identify retrofit applications for Sargent 8800 Series when using 9800 escutcheon trim. This is not a blanket fit guarantee: compare the existing strike, door preparation, mounting locations, and trim configuration before ordering. Outside trim and other series options should not be assumed included.

Installation and Replacement

Use the preparation template and instructions matching the selected panic or fire exit device. Standard door thickness is 1-3/4", with 2-1/4" listed as optional. A 4-1/2" minimum stile width is specified for single or double door applications using the standard 239 strike and pull, lever, thumbpiece, or escutcheon trim. Verify the 2-3/4" backset and mounting clearance before drilling.

Wood and machine screws are furnished; thru-bolts are available on request and included as standard with fire-rated devices. The series has a non-handed center-hub design and reversible components; follow the applicable handing instructions rather than assuming every component needs no adjustment. Check touch-bar operation, latch engagement, closing, and latching through repeated cycles. Allen-key dogging is standard on non-fire-labeled devices only.

Problems It Helps Address

  • Worn exit hardware: Offers a replacement option where the device, strike, trim, and preparation are compatible.
  • Frequent daily use: ANSI A156.3 Grade 1 construction supports demanding commercial applications.
  • Existing 161 preparation: The cover is described as covering stock hollow metal doors with a 161 cutout; confirm the complete preparation requirements.
  • Different opening requirements: Separate panic and fire exit selections help purchasers choose the appropriate configuration.
  • Finish coordination: Six listed finishes provide choices for matching the surrounding hardware.

At a busy doorway, occupants can operate the touch bar as they leave, while the door and closer work together to return the opening to a latched position. If operation feels stiff or the latch misses the strike, check the alignment and complete opening instead of assuming the bar alone is responsible.

Product Details

  • Series: A9800 panic and AF9800 fire exit rim devices
  • Listed lengths: 24", 32", and 36"
  • Rating selections: Non-Fire Rated and Fire Rated
  • Grade: ANSI A156.3, Grade 1
  • Door thickness: 1-3/4" standard; 2-1/4" optional
  • Minimum stile width: 4-1/2" with the specified standard strike and trim arrangements
  • Backset: 2-3/4"
  • Chassis: Non-ferrous alloy for panic grade; steel for fire grade
  • Cover, rail assemblies, and end caps: Described in brass, bronze, or stainless steel, depending on configuration
  • Rail movement: Travels in the direction of door swing
  • Latch bolt: Stainless steel, 3/4" throw
  • Springs: Stainless steel throughout
  • Handing: Non-handed center hub, with reversible components as instructed
  • Strike: 239 packed standard
  • Finishes: US32D satin stainless steel, US32 bright stainless steel, US10B antique bronze oiled, US3 bright brass, US1 matte black, and US4 satin brass
  • Dogging: Allen-key type standard on non-fire-labeled devices; cylinder dogging listed as available

Series Options

The existing series information lists alarm options, mullions, electrical latch retraction (ELR), RX and LX signal switches, and outside trim functions. Trims are described as thru-bolted, with Grade 1 lever and escutcheon construction, clutch on rose trims, and rigid escutcheon trims covering a 161 cutout. These are series capabilities, not confirmation of included equipment for each selection. Confirm the exact ordered configuration and package contents.

Optional antimicrobial coating is listed for US32D only under part number ANTB-EXIT. It is not shown as a separate selection here and should not be assumed included.

Panic, Fire, and Accessibility Considerations

The existing specifications identify A9800 for panic use and AF9800 for fire exit hardware, with UL and ULC listings and references to UL10C and UBC 7-2-1997. They describe up to 3-hour fire-labeled installations on 4' x 8' single doors and 8' x 8' pairs, including pairs swinging in the same or opposite directions where permitted by the listing. Verify the selected model's current listing and complete assembly requirements.

The series is also described as ADA compliant with a stated 5 lb opening-force specification. Confirm the ordered configuration and complete installed opening against the project's requirements; the device alone does not establish accessibility or the fire rating of the opening.
