CR8000 DIGITAL KEYPAD DOOR LOCK
CR8000 Series Digital Keypad Door Lock – Heavy Duty Security for Every Door
Secure, Reliable, and Smart Access Control
The CR8000 Series Digital Keypad Door Lock by Cal-Royal Products, Inc. delivers advanced security and convenience for offices, schools, hospitals, apartments, hotels, residential, commercial, and public buildings. Engineered to meet ANSI/BHMA Grade 1 standards, this heavy-duty lock combines robust construction with innovative features for maximum protection and ease of use.
Key Features
- Digital Keypad with Multi-Level Access: 12 programmable buttons support group, individual, master, manager, service, and emergency codes.
- Up to 100 User Codes: Manage access for large teams or families with 100 unique user codes and 3 manager codes.
- Clutch Technology: Reduces wear by allowing the lever to turn without retracting the latch, extending lock life.
- Weather Resistant: Operates reliably in extreme temperatures from -30°F to 150°F (-35°C to 66°C).
- Interchangeable Core Option: Compatible with 6 or 7 pin cores (BEST and FALCON) for flexible keying.

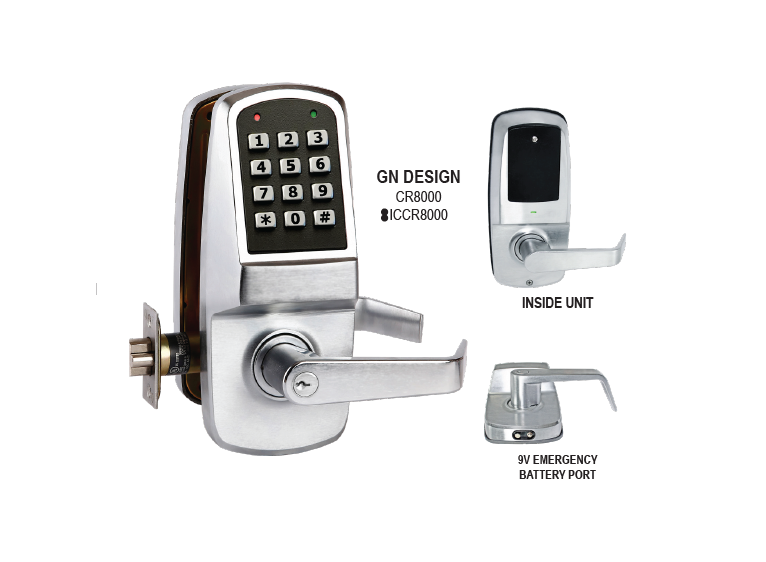

- Emergency Power: 9V battery port ensures access even if main batteries are depleted.
- Anti-Tamper Lockout: Automatically disables after 5 invalid code entries to prevent unauthorized access.
- Non-Handed, Reversible Design: Easy installation for left or right door openings.
- 2-Year Warranty: Backed by Cal-Royal’s commitment to quality and support.
Technical Specifications
- Door Thickness: 1 3/8" to 1 3/4"
- Backset: Standard 2 3/4", optional 2 3/8", 3 3/4", or 5"
- Latch Faceplate: 1 1/8" x 2 1/4" (standard), 1" x 2 1/4" (optional)
- Strikes: ASA Strike standard; T and full lip strike available
- Cylinder: 6-pin solid brass “Schlage C” keyway with two brass keys per lock
- Power Supply: 4 AA batteries (included)
- Certifications: ANSI/BHMA A156.2 Series 4000 Grade 1, UL 3-hour fire rated, Buy American Act compliant
Advanced Access Control Functions
- Master, Manager, and User PIN Codes: Program and manage access levels for different users.
- One-Time User PIN Codes: Issue up to 3 single-use codes for guests or service personnel.
- Passage Mode: Allow continuous entry for non-restricted traffic when needed.
- Lock-Out Mode: Restrict all user codes except master and manager for enhanced security.
- Beep & LED Indicators: Visual and audio feedback for successful code entry and programming.
- Key Override: Mechanical key access for emergencies or power loss.
Available Finishes
| BHMA Symbol | US Code | Description |
|---|---|---|
| 626 | US26D | Satin Chrome |
| 613 | US10B | Oil Rubbed Bronze |
| 601 | US1 | Flat Black |
Applications
- Offices and schools
- Hospitals and healthcare facilities
- Apartments and condos
- Hotels and motels
- Residential, commercial, and public buildings
Why Choose the CR8000 Series?
- Unmatched Security: Meets the highest industry standards for durability and performance.
- Flexible Access Management: Easily add, remove, or modify user codes as your needs change.
- Easy Installation: Fits standard door preparations and is reversible for left or right-hand doors.
- Peace of Mind: Weather-resistant, fire-rated, and backed by a 2-year warranty.
CR8000 Series Digital Keypad Door Lock: Heavy-Duty Security and Smart Access for Every Door
Upgrade your security with the CR8000 Series digital keypad door lock from Cal-Royal — a heavy-duty keypad door lock engineered for performance, durability, and flexible access control. Ideal for offices, schools, hospitals, apartments, hotels, and residential or commercial properties, the CR8000 keypad door lock delivers ANSI/BHMA Grade 1 protection and feature-rich operation that meets demanding daily use.
Why Choose the CR8000 Digital Keypad Door Lock? When selecting an electronic keypad door lock for high-traffic or sensitive environments, reliability matters. The CR8000 digital keypad door lock combines robust construction with practical functionality:
- Heavy-duty construction: Built to ANSI/BHMA Grade 1 standards for maximum durability.
- Flexible access management: Supports up to 100 user codes plus master and manager codes for layered access control.
- Multi-level access: Program group, individual, master, manager, service, and emergency codes to suit organizational needs.
- Key override and emergency power: Mechanical key override and a 9V emergency battery port ensure access during power loss.
- Weather resistant and rugged: Operates from -30°F to 150°F, making it suitable as a weather resistant keypad lock for exterior doors.
- Long-lasting design: Clutch technology reduces internal wear, extending the life of the lock.
Key Features That Matter The CR8000 Series offers features that make it a top choice among commercial keypad locks and residential installations requiring professional-grade security:
- Up to 100 unique user PIN codes and 3 manager codes for large teams or multi-unit properties.
- One-time user PIN codes for guest or service access — ideal for hotels, rentals, and maintenance staff.
- Passage and lock-out modes for flexible traffic control.
- Beep and LED indicators for clear user feedback during programming and entry.
- Interchangeable core compatibility (6- or 7-pin BEST and FALCON), plus standard solid brass cylinder with two keys.
- ANSI/BHMA A156.2 Series 4000 Grade 1 certification and UL 3-hour fire rating for compliance-driven projects.
Applications and Use Cases The CR8000 keypad door lock is a versatile solution across sectors:
- Commercial properties: Secure offices, storage areas, and employee-only zones with role-based access using manager and user codes.
- Educational institutions: Control classroom and facility access without issuing physical keys to every user.
- Healthcare facilities: Improve staff access management while maintaining emergency override capabilities.
- Multi-family housing: Manage tenants and service personnel with up to 100 user codes and one-time codes for short-term access.
- Hospitality and rentals: Provide single-use guest codes and easy code management for turnover.

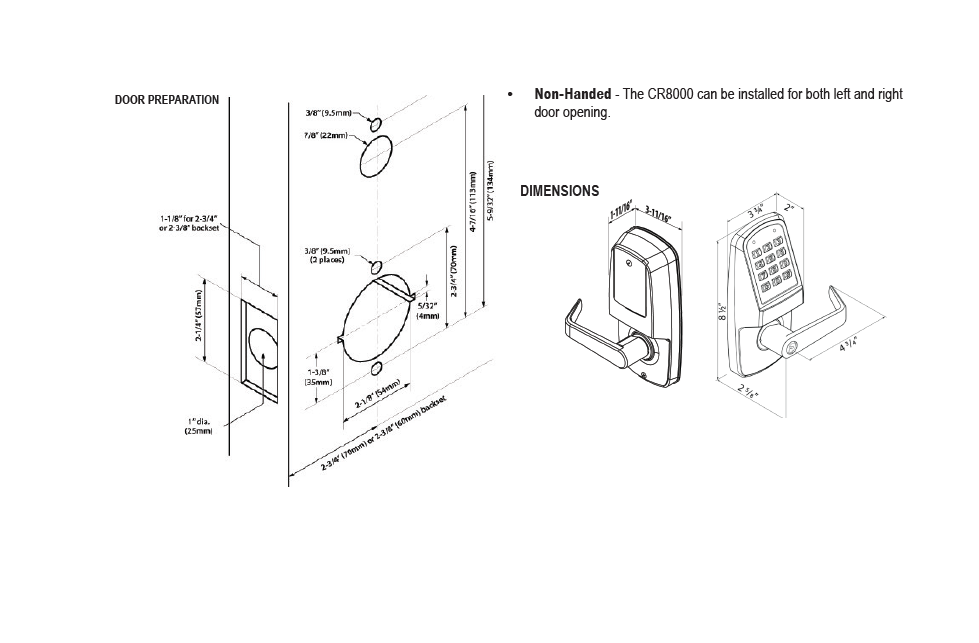

Installation and Compatibility Designed for easy installation, the CR8000 keypad door lock is non-handed and reversible to fit left- or right-opening doors. It fits standard door preparations and supports multiple backset options (standard 2 3/4" with others available). The lock operates on 4 AA batteries (included) with a 2-year warranty for added peace of mind.
Finish Options and Specifications Available in Satin Chrome (US26D), Oil Rubbed Bronze (US10B), and Flat Black (US1), the CR8000 keypad lock complements modern architectural styles while meeting demanding performance specs such as ANSI/BHMA Grade 1 and UL fire ratings.
Conclusion For organizations and homeowners seeking a reliable, feature-rich electronic keypad door lock, the CR8000 Series digital keypad door lock delivers heavy-duty performance, flexible access control, and industry-leading durability. Whether you need a weather resistant keypad lock for exterior doors, a commercial keypad lock for high-traffic areas, or a secure solution for multi-family properties, the CR8000 is a strong choice backed by Cal-Royal’s commitment to quality.
