ESC6600 Exit Device Trim

Usually Ships: 1-3 Business Days

Description:

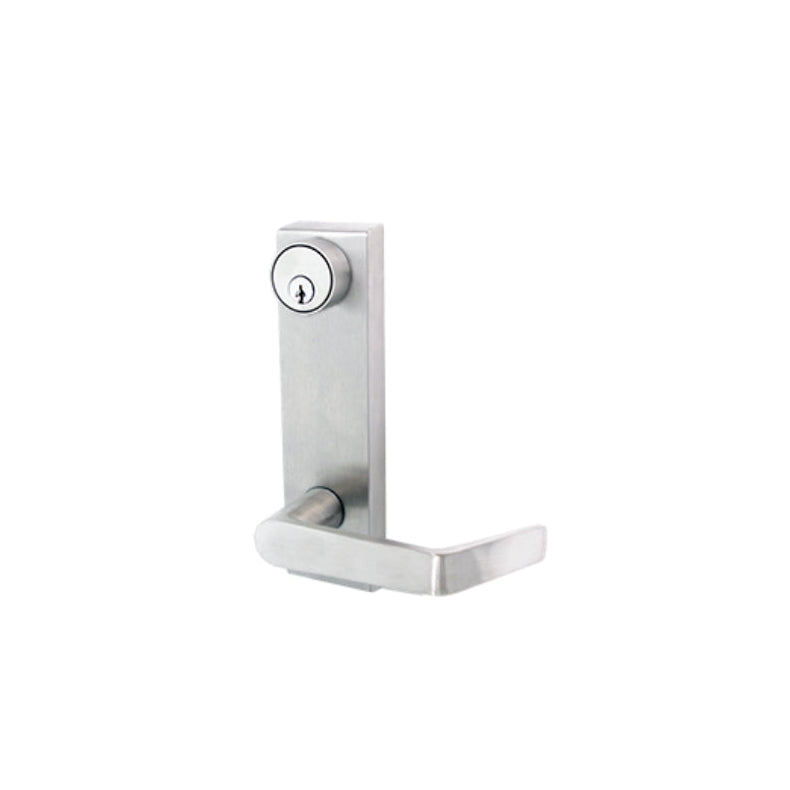

The Cal-Royal ESC6600 Exit Device Trim is a high-performance escutcheon lever trim designed for use with Cal-Royal 6600 and F6600 Series Rim and Vertical Rod Exit Devices. Built for durability and security, this trim is ideal for commercial and institutional applications requiring reliable access control.

Key Features:

• Multiple Functions Available:

  • Entrance (ANSI 08): Key locks/unlocks lever (Classroom function)
  • Storeroom (ANSI 09): Lever always locked; key required to operate
  • Passage (ANSI 14): Lever always operable; no locking
  • Dummy: Non-functioning trim for pull use only
• Compatible with 6600 & F6600 Series Exit Devices
• Schlage “C” Keyway Standard: Easily rekeyed to match existing systems
• Escutcheon Plate Dimensions: 2-3/4” W x 10-1/4” H
• Lever Length: 4-3/4” for ADA-compliant operation
• Covers Standard 161 Cutout: Easy retrofit for hollow metal doors
• Finish Options: Satin Chrome (US26D), Aluminum (ALUM), Duronotic (DURO)
• Grade 1 Construction: Built for high-traffic commercial environments
• Non-Handed Design: Suitable for left- or right-hand doors

Why Choose the ESC6600 Trim?

• Provides secure and functional access control for exit doors
• Matches seamlessly with Cal-Royal 6600/F6600 exit devices
• Ideal for schools, offices, hospitals, and public buildings
• Easy to install and maintain with durable, vandal-resistant design
