XP Explorer Series Lockset
XP Explorer Series Grade 2 Cylindrical Lever Lockset
Usually Ships: 1-3 Days
The Cal-Royal XP Explorer Series Lockset provides lever-operated door hardware for compatible office, school, apartment, hotel, residential, commercial, and public-building openings. Choose the operation your room needs: XP00 Entrance, XP03 Classroom, XP05 Storeroom, XP20 Privacy, XP30 Passage, XP40 Dummy, or XP50 Exit. The standard XP configuration uses a non-clutch mechanism, with individual springs on each side to help resist lever sag and maintain handle return.
Practical Uses and Function Selection

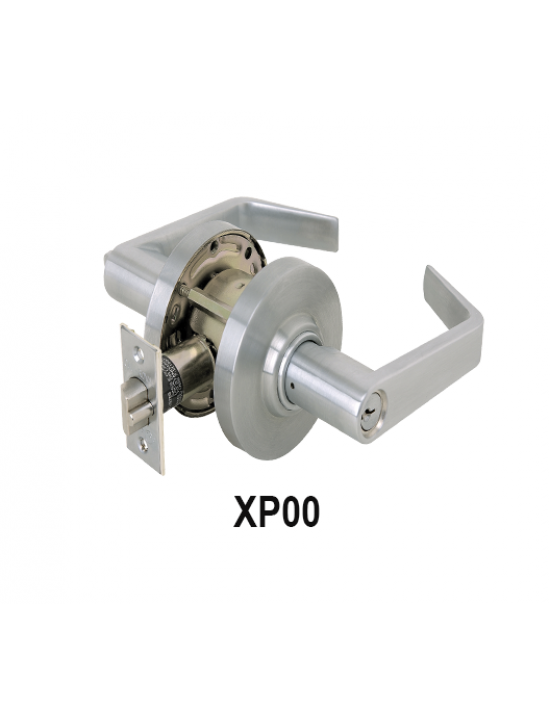

- XP00 / 00-Entrance: Inside push/turn-button control with outside key access. Pushing the button locks the outside lever until released by the key or inside lever. Pushing and turning the button maintains outside locking until the button is manually unlocked. ANSI F109.
- XP03 / 03-Classroom: The outside key locks or unlocks the outside lever. The inside lever operates the latch even when the outside lever is locked. ANSI F84.
- XP05 / 05-Storeroom: The outside lever remains fixed; the outside key or inside lever retracts the latch. Useful where staff should not leave the outside lever unlocked. ANSI F86.
- XP20 / 20-Privacy: Inside push-button locking with an outside emergency release. Turning the inside lever or closing the door releases the button. Appropriate for privacy rather than keyed access control. ANSI F76.
- XP30 / 30-Passage: Both levers operate the latch at all times, without a locking function. ANSI F75.
- XP40 / 40-Dummy: Single, non-operating lever trim for one side of a door, used as a pull. It does not provide a working latch or keyed locking function.
- XP50 / 50-Exit: Blank plate outside with an always-unlocked inside lever. This is a cylindrical exit-function lock, not a push-bar panic device. ANSI F89.
In a small office, an XP00 can give a private room inside locking control, while an XP05 keeps a supply room's outside lever locked and an XP30 allows unrestricted passage through a connecting doorway. Matching the function to daily use helps avoid a replacement that looks right but behaves incorrectly.
Installation and Replacement
Measure door thickness, backset, cross-bore, latch bore, faceplate, and frame strike preparation before ordering. Standard XP series specifications cover 1-3/8" to 2" thick doors, with a 2-3/4" standard backset. Other listed backsets are optional configurations; do not assume the standard latch adjusts to every listed size.
The linked operating-lock template shows a 2-1/8" cross-bore, a 1" latch bore, and optional thru-bolt holes. The standard 2-1/4" x 1" square-corner latch faceplate is packed with a 1/8" plastic filler for 1-1/8"-wide preparation. Check corner shape and mounting locations as well as overall size.
Use the actual supplied instructions and the appropriate function template before drilling. XP40 dummy trim uses a separate mounting template and does not require the same operating-lock bore preparation. The exit-function reference linked below is labeled XPRL50; confirm its applicability to the supplied XP50 design and components rather than assuming different lever designs have identical preparation.
Set handing and assemble the latch and trim as instructed. Test the selected function with the door open before closing it, then confirm smooth inside operation, latch engagement, and strike alignment. On applicable deadlatching functions, the auxiliary plunger should bear on the strike rather than enter the latch opening. Optional thru-bolting must match the ordered hardware and approved preparation.
Problems It Helps Address
- Incorrect access behavior: Seven offered functions cover keyed access, privacy, unrestricted passage, dummy pull use, and exit-only outside treatment.
- Lever sag: Individual springs on each side support consistent handle return during normal operation.
- Replacement-fit uncertainty: Published thickness, backset, and faceplate references help identify preparation differences before installation.
- Key-system coordination: Standard keyed functions use a 6-pin C-keyway cylinder, with other configurations available by special arrangement.
A lockset does not close the door or fix sagging hinges, binding, or a misaligned strike. Address those conditions separately for reliable latching.

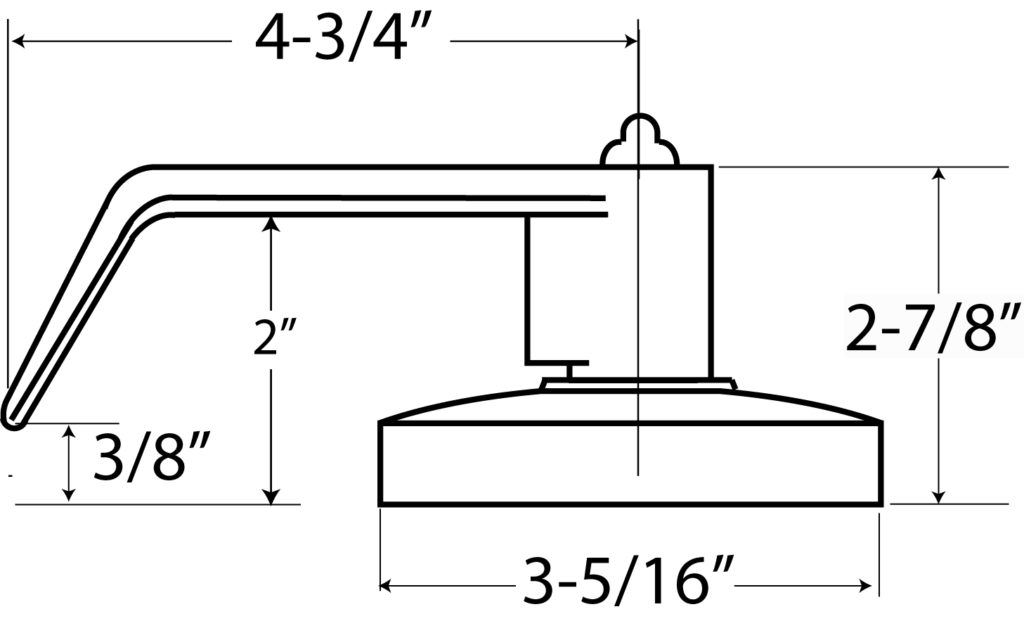

Product Details
- Series: Explorer XP cylindrical lever hardware
- Offered functions: XP00, XP03, XP05, XP20, XP30, XP40, and XP50
- Mechanism: Standard XP non-clutch; CXP is a separate clutch configuration
- Door thickness: 1-3/8" to 2" for standard XP configurations
- Backset: 2-3/4" standard; 2-3/8", 3-3/4", and 5" optional
- Operating latch: Listed 1/2" throw, solid brass, reversible for right- or left-hand applications; dummy trim does not use this latch specification
- Latch faceplate: 2-1/4" x 1", square corner, packed with 1/8" plastic filler for 1-1/8" width
- Performance: Manufacturer identifies ANSI/BHMA A156.2, Series 4000, Grade 2, with performance exceeding 400,000 cycles
- Fire reference: Manufacturer identifies UL-listed 3-hour rated series configurations. The existing listing also references UL10C and UBC7-2-1997; verify current labeling and requirements for the exact ordered function and assembly
- Exposed trim: Wrought brass, bronze, or stainless steel components; zinc-cast levers plated to match the trim finish
- Standard keyed configuration: Solid brass 6-pin C-keyway cylinder with two keys per keyed lock; not a specification for privacy, passage, dummy, or blank-outside exit functions
- Strike: ASA standard on applicable operating locks; T and full-lip strikes available on request
Finish Options
US26D-Satin Chrome, US10B-Antique Bronze Oiled, US26-Bright Chrome, US3-Bright Brass, and US4-Satin Brass. These are the finish selections offered on this page; broader catalog finish lists do not establish availability of every function/finish combination.
Optional Series Configurations
Interchangeable core: IC-prefixed versions accept compatible 6- or 7-pin BEST, FALCON, and ARROW cores. Combinated, uncombinated, temporary construction-core, and master-key arrangements require confirmation. These are not automatically supplied with the standard cylinder.
Other keyways and cylinders: Series literature lists Schlage E and C-K; Russwin D1–D4; Corbin 59/60; Corbin-Russwin L4; Sargent LA/LB/LC; Falcon/Weiser E; Arrow A; Yale 8 and GA; and Kwikset. Medeco, Assa, Kaba, and Cal-Royal HSK configurations are also referenced. Confirm the exact compatible cylinder and factory ordering requirements before purchase.
Clutch and other options: CXP clutch models, thru-bolt mounting, tactile warning, and lead lining are separate series configurations or options. They are not established package contents for every XP selection here. The catalog's XP-T360 combination and XPRL designs are also separate configurations; XP-T360's thickness and adapter requirements should not be applied indiscriminately to this listing.
Warranty and Project References
The existing listing identifies BHMA certification, a lifetime warranty, barrier-free applications, and a Buy American Act claim. Confirm current manufacturer documentation, warranty terms, and project suitability for the exact configuration. A series-level rating or lever shape alone does not establish approval or accessibility compliance for a complete opening.
Installation Instructions and Templates
- Explorer Series Installation Instructions
- Explorer XP00 / XP30 Operating-Lock Preparation Template, Applicable to Functions Except Dummy as Noted on Sheet
- Explorer XP40 Single Dummy Lever Template
- Explorer XPRL50 Exit-Function Template, Confirm Applicability to Supplied XP50 Design
Catalog and Function Reference
Explorer XP / CXP Series Catalog: Specifications, Options, and Functions
