Grade 1 Heavy Duty Cylindrical Leverset Privacy With Indicator
INDCGN-20 Grade 1 Heavy-Duty Privacy Indicator Leverset

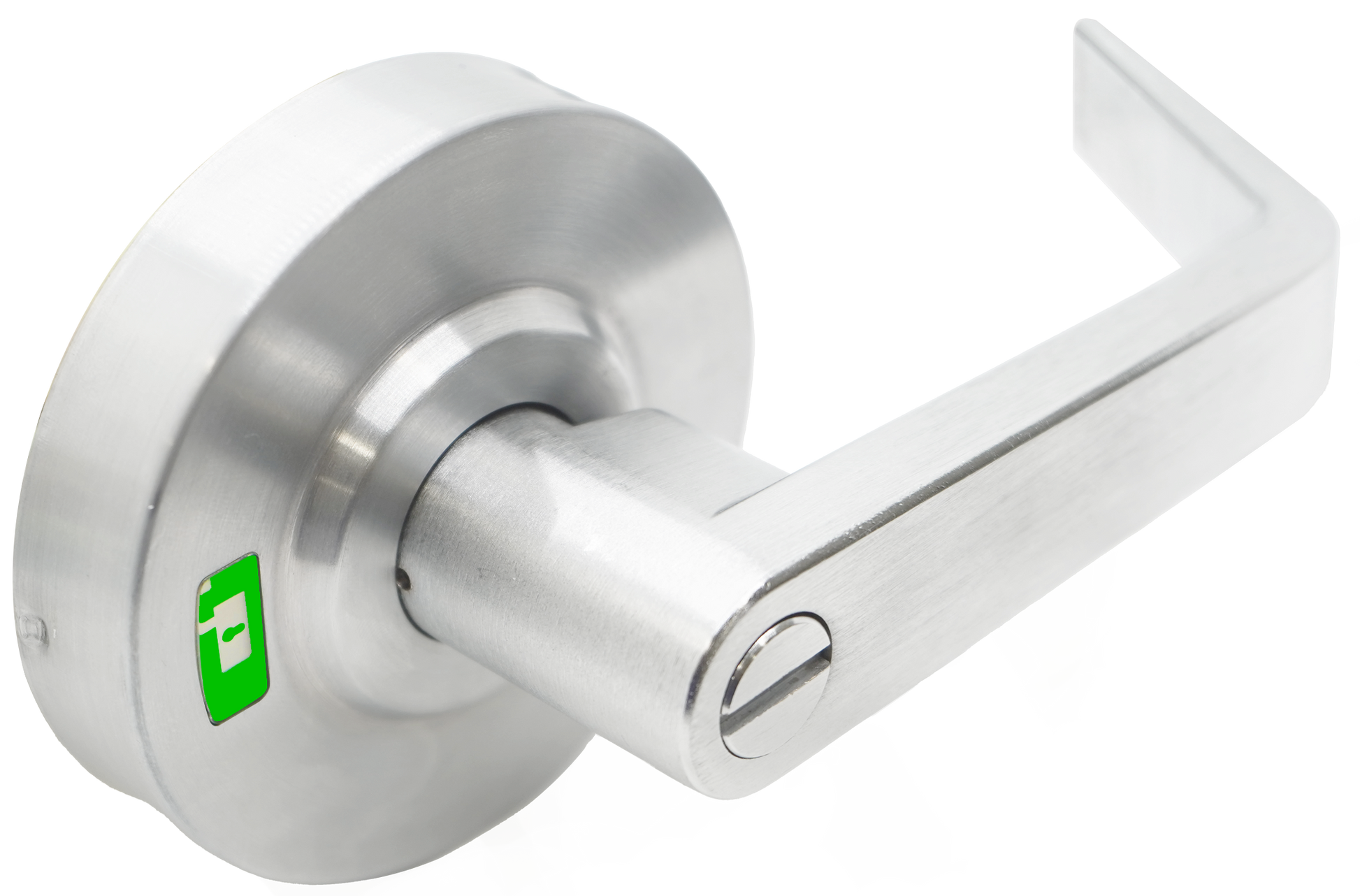

Our GENESYS INDCGN-20 privacy indicator leverset combines a non-clutch cylindrical design with a red IN USE and green VACANT indicator. An inside push button provides the privacy control, while an emergency slot on the outside trim provides an emergency unlocking point. Specify the exact door preparation and finish before ordering.
Documented Specifications
- Performance reference: Meets ANSI/BHMA A156.2, Series 4000, Grade 1 requirements; the specification states that the series exceeds 1,000,000 cycles.
- Design: Non-clutch privacy indicator leverset.
- Door thickness: 1-3/8 inches to 1-3/4 inches. Specify the actual door thickness when ordering.
- Standard backset: 2-3/4 inches.
- Standard latch: Brass latch with 1/2-inch throw.
- Standard strike: ASA, 1-1/4 inches x 4-7/8 inches.
- Lever: Non-handed, 4-3/4-inch full length with a 3/8-inch return.
- Mounting: Thru-bolted assembly with a separate spring cage for each lever and concealed mounting screws.
Available Finish Choices
- US26D: Satin Chrome.
- US1: Matte Black.
- US10BE: Dark Satin Bronze.
- US26: Bright Chrome.
- US3: Bright Brass.
Privacy and Occupancy Indication

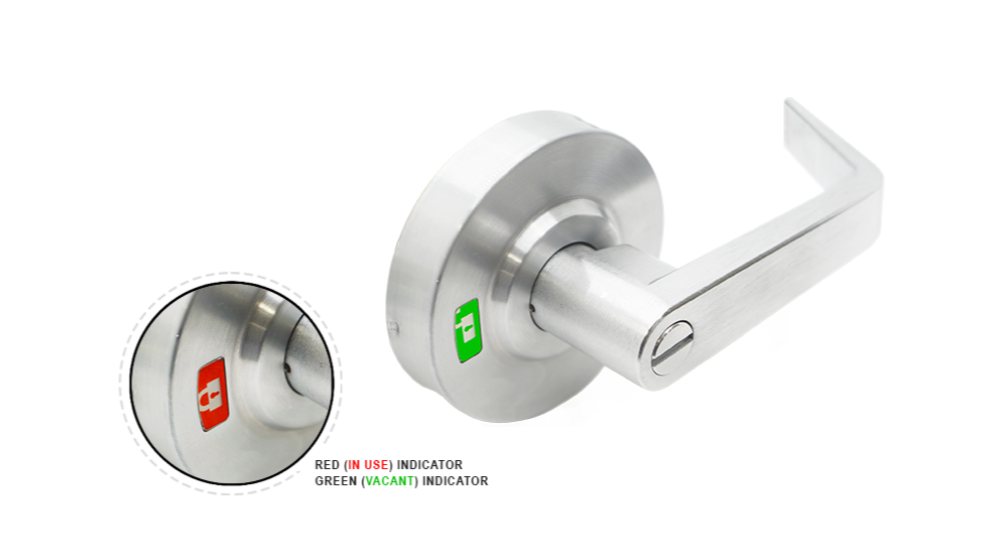

The red IN USE and green VACANT display communicates the lock's selected privacy state. Coordinate its use with the actual room and operating procedure; the display is not an occupancy sensor. Keep the indicator visible and verify that its state agrees with the lock operation after installation.
Emergency access: The outside trim includes an emergency slot for unlocking in an emergency. Confirm the correct release procedure for the supplied lock and make sure responsible staff understand it. Do not treat this privacy function as a substitute for a specified exterior-security lock.
Practical Uses
- Shared interior rooms: Provide visible privacy status where the room schedule calls for an indicator leverset.
- Commercial projects: Coordinate the Grade 1 series with the opening's exact hardware requirements.
- Replacement work: Compare the door thickness, backset, bore, latch, and strike preparation before replacing an existing lock.
Everyday example: A facilities team wants clearer privacy indication on a shared interior room. They confirm the INDCGN-20 function, measure the door thickness and backset, and check the latch and strike preparation. During fitting, they align the indicator in its unlocked position as directed, then test the push button, both levers, indicator display, emergency release, and full latch engagement with the door open before completing closed-door checks.
Installation Checks
- Confirm preparation: Use the exact instructions and template for the selected lock, not dimensions taken from another cylindrical-lock series.
- Set door thickness: Follow the specified adjustment procedure for the actual door.
- Align the indicator: Read Step 5 before installation and ensure the button and indicator are in the unlocked position as directed.
- Check chassis engagement: Verify that the latch tailpiece and lock retractor engage correctly.
- Secure the trim: Fit the separate spring cages and mounting components according to the manual.
- Check the strike recess: Provide sufficient clearance for the latchbolt to extend fully.
- Test all functions: Verify locking, unlocking, indicator agreement, emergency access, and reliable closing and latching.
Problems It Helps Address
- Privacy status is unclear: Adds a defined red/green status display.
- A project calls for a Grade 1 privacy leverset: Provides the documented INDCGN-20 series performance reference.
- Hardware replacement needs coordinated preparation: Supplies model-specific specification and installation documents.
Project Coordination and Care
The series specification includes an accessibility-design reference. Confirm the complete opening's required operation, clearances, mounting, and other applicable project conditions rather than assuming that a component alone establishes compliance.
Inspect mounting security, lever return, indicator alignment, latch engagement, and emergency-release operation periodically. Use cleaning methods appropriate for the selected finish. Investigate binding or an incorrect display instead of forcing the lever or button.
