MR9800 Mortise Exit Device US32D

5.0 (1 review)
5.0
1 review
5 1
4 0
3 0
2 0
1 0
Regular price $603.00
Sale price $603.00 Regular price
Unit price
Ask a question

Ask a Question

* Required fields

Size guide Share
Usually Ships: 1-3 Business Days

MR9800 / FMR9800 Mortise Exit Device, US32D Satin Stainless Steel

The Cal-Royal MR9800 Mortise Exit Device combines touch-bar operation with an included Grade 1 mortise lock for compatible commercial and institutional doors. This listing offers 36" and 48" lengths, Fire Rated and Non-Fire Rated selections, and LHR or RHR handing in US32D satin stainless steel. The existing specifications identify FMR9800 as the fire exit model; select the configuration required for the opening.

Practical Uses

Consider the MR9800 / FMR9800 for suitable high-traffic exits in schools, universities, hospitals, offices, and other commercial buildings where mortise exit hardware is specified. It is a replacement option for an opening with compatible mortise preparation, strike, and trim, not a direct substitute for rim or vertical rod hardware.

The satin stainless steel finish provides a coordinated appearance with matching door hardware. Choose the length and handing for the actual opening rather than relying on the appearance of the existing device.

Installation and Replacement

The existing specifications call for 1-3/4" thick wood or metal doors with a minimum 4-1/2" stile width. Before ordering or drilling, verify the mortise pocket, device mounting locations, strike preparation, door width, handing, and any outside trim against the appropriate manufacturer documents.

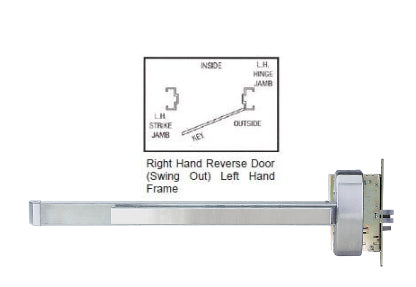

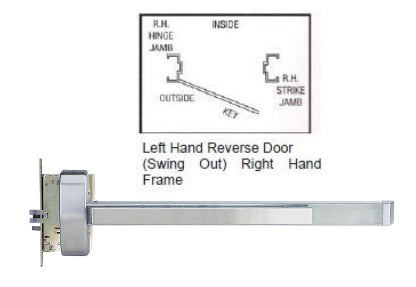

Select LHR (Left Hand Reverse) or RHR (Right Hand Reverse) to suit the opening. Field-reversible handing is listed; use the latch-bolt handing instructions and, where applicable, the separate trim handing guide. Reversing the latch does not by itself confirm that every installed trim arrangement is correct.

Use the installation instructions matching the panic or fire exit configuration. Check latch engagement with the included ANSI strike, ensure the door closes without binding, and test touch-bar release and reliable relatching through repeated cycles. Cylinder dogging is listed as available for non-fire-rated models only. Do not apply non-fire dogging arrangements to fire exit hardware.

Problems It Helps Address

  • Worn mortise exit hardware: Offers a replacement where the existing preparation, strike, and trim are compatible.
  • Demanding daily traffic: ANSI A156.3 Grade 1 construction supports commercial and institutional use.
  • Different door widths and handing: Two listed lengths and LHR/RHR selections help match the opening.
  • Coordinating visible hardware: US32D satin stainless steel complements matching architectural finishes.
  • Different rating requirements: Separate fire and non-fire selections help distinguish the required hardware configuration.

During a busy school day or office shift, occupants press the touch bar to release the mortise latch. After installation, the goal is consistent operation every time the door closes. If the latch rubs or fails to engage, inspect door alignment, the strike, closer operation, and hardware adjustment as a complete system.

Product Details

  • Part numbers: MR9800 mortise exit device; FMR9800 fire exit configuration identified in the existing specifications
  • Finish: US32D satin stainless steel
  • Listed lengths: 36" and 48"
  • Rating selections: Fire Rated and Non-Fire Rated
  • Handing: LHR and RHR selections; field-reversible as instructed
  • Standard: ANSI A156.3, Grade 1
  • Door requirements: 1-3/4" thick wood or metal doors; minimum 4-1/2" stile width
  • Lock mechanism: Included Grade 1 mortise lock with steel case
  • Head chassis: Aluminum
  • Chassis cover and end cap: Stainless steel
  • Strike: Standard ANSI stainless steel strike included
  • Dogging: Cylinder dogging listed as available on non-fire-rated models

Series Options and Performance Considerations

The existing series information lists electrical latch retraction (ELR), RX and LX signal switches, and optional antimicrobial coating on US32D. These are available series options, not confirmation that they are included in this listing. Verify outside trim compatibility, function, package contents, and any electronic requirements before ordering.

The existing specifications identify UL panic and fire exit listings, with the FMR9800 described for up to 3-hour fire-labeled doors. Confirm the current listing for the exact device and complete door assembly; not every configuration has the same rating. The listing also describes ADA models with a 5 lb opening-force specification. Hardware selection alone does not establish accessibility of the complete installed opening.



Installation Instructions and Handing Guides

The manufacturer documents below use N-MR9800 / N-FMR9800 designations. Verify the supplied model and preparation against the matching document before installation.

Preparation Templates

Catalog and Specifications

View N-MR9800 Mortise Exit Device Catalog / Specifications
