14SDLR PASSAGE SLIDING DOOR LOCK

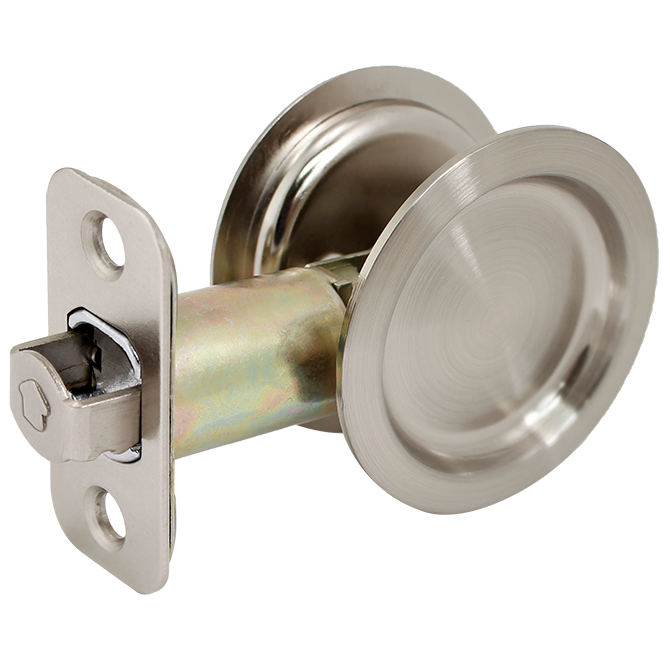

14SDLR Passage Sliding Door Lock with Pop-Up Finger Pull
The Cal-Royal 14SDLR Passage Sliding Door Lock provides non-locking operation for compatible interior pocket-type sliding doors. Its pop-up finger pull helps you retrieve the door from its pocket without relying on a projecting conventional handle. The 14SDLR uses a 2-3/8" backset and fits listed door thicknesses from 1-3/8" to 1-3/4".
Practical Uses
- Closets and connecting rooms: Operate a pocket door where convenient access matters more than privacy locking.
- Space-saving interiors: Provide a finger-pull arrangement for an opening where a swinging door would take up useful floor space.
- Replacement projects: Replace compatible passage hardware after checking the backset, door preparation, thickness, and clearances.
Everyday example: Slide a closet door into its pocket to access shelves, then use the pop-up finger pull to bring the door back out when you are finished. Passage operation means there is no privacy lock to set or release.
Passage Function: Not a Privacy Lock
Although the product name uses “lock,” 14SDLR is the passage model. Do not choose it when you need bathroom privacy, keyed access control, or security locking. The manufacturer catalog lists 18SDLR separately as a 2-3/8"-backset privacy model and 30SDLR as a 2-3/4"-backset passage model; those are different configurations, not selectable functions or adjustable backsets of 14SDLR.
Installation and Replacement
Measure before ordering: Verify the 2-3/8" backset, measured from the door edge to the relevant operating centerline, and confirm a 1-3/8" to 1-3/4" thick door. Compare the complete existing cutout and mounting pattern with the model-specific drawing. Matching the backset alone does not establish a drop-in replacement.
Use the correct document: The combined installation document covers 14SDLR and 30SDLR. Use the preparation applicable to the 14SDLR's 2-3/8" backset, and cross-check the separate 14SDLR drawing rather than using the 30SDLR dimensions.
Check pocket clearance: Confirm that the assembled hardware and finger pull clear the pocket opening and do not rub the frame or trim. Check the door's stopping position and ensure the finger pull remains usable when the door is recessed.
Fastening and testing: Follow the supplied installation instructions and match fasteners to the actual assembly. The 14SDLR reference drawing labels M4 x 0.7 screws and #7 x 3/4" wood screws; confirm their locations and supplied quantities before starting. Test sliding travel and finger-pull deployment repeatedly before putting the opening into service. Hardware does not correct a sagging door, worn track, or misaligned guides.
Problems It Helps Address
- A recessed door that is difficult to retrieve: The pop-up finger pull provides a grasping point at the door edge.
- Unnecessary privacy locking: Passage function suits interior openings that should remain available without unlocking.
- Uncertain replacement fit: Dedicated preparation documents help compare the existing opening before cutting.
Product Details
- Part number: 14SDLR
- Function: Passage, non-locking
- Application: Compatible interior pocket-type sliding doors
- Backset: 2-3/8"
- Door thickness: 1-3/8" to 1-3/4"
- Pull: Pop-up finger pull
Finish Options
US1-Matte Black, US10B-Antique Bronze Oiled, US15-Satin Nickel, US26-Bright Chrome, and US26D-Satin Chrome. Finish names do not establish the base material of every component.
