18SDLR PRIVACY SLIDING DOOR LOCK

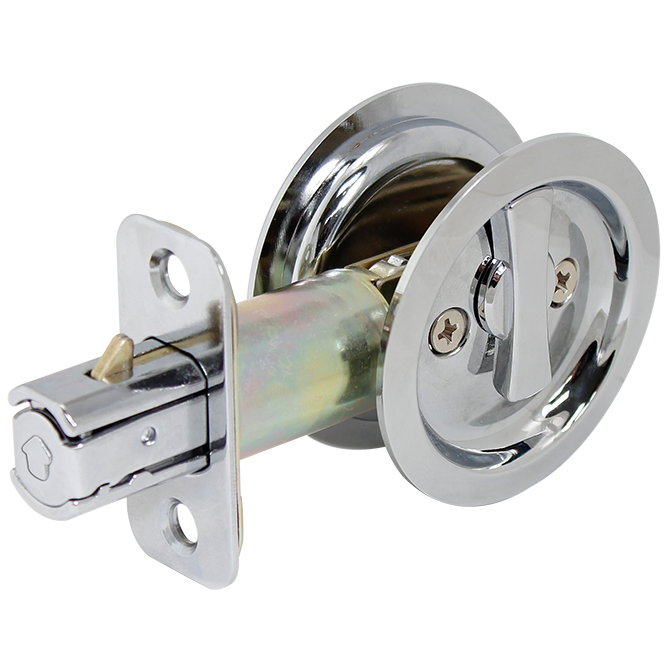

18SDLR Privacy Sliding Door Lock with Pop-Up Finger Pull
The Cal-Royal 18SDLR Privacy Sliding Door Lock provides privacy locking and a convenient pop-up finger pull for compatible interior pocket-type sliding doors. With a 2-3/8" backset and a listed door-thickness range of 1-3/8" to 1-3/4", the 18SDLR is intended for suitable bedroom, bathroom, and other private interior openings where the door slides into a wall pocket rather than swinging into the room.
Practical Uses
- Bathrooms and bedrooms: Adds privacy control to a compatible pocket door without installing a projecting lever lockset.
- Space-saving interior openings: Works with the pocket-door arrangement where a swinging door would occupy useful floor space.
- Retrieving a recessed door: The pop-up finger pull provides a grasping point when the door edge is accessible at the pocket opening.
- Replacement work: Suitable when the existing door thickness, backset, bore, mortises, and strike location match the supplied hardware.
For example, a pocket door can slide out of the way beside a small bathroom, then be pulled closed using the finger pull and secured for privacy. Correct strike alignment lets the lock engage without having to lift or force the door into position.
Installation and Replacement
Measure the door thickness and verify the 2-3/8" backset, measured from the door edge to the lock centerline. Check that the door has enough sound material for the lock body and fasteners, and that both face trim and the retracted finger pull clear the pocket guides, jamb, and trim throughout travel.
The manufacturer's combined instructions identify a 2-1/8" face bore and a 1" edge bore, together with additional latch-face and strike-box preparation. An existing face bore alone does not establish a direct fit. Follow the model-specific instructions for the privacy configuration, not the separate passage steps also included in the document.
Use the actual supplied lock and applicable template to mark mortises, bore depths, screw locations, and the strike recess before cutting. Print templates at their intended scale. Keep the faceplate and strike seated as instructed so projecting edges do not interfere with sliding.
Set the strike to the lock's actual engagement position with the door properly aligned on its track. Test the privacy control, release operation, finger pull, and smooth sliding travel with the door open before testing it closed. Confirm any outside emergency-release provision and how it operates on the supplied assembly before putting the room into use; do not assume it works like a keyed entrance lock.
Problems It Helps Address
- Lack of privacy on a pocket door: Provides a privacy-locking function on a compatible interior opening.
- Difficulty grasping the door edge: The pop-up finger pull offers a dedicated point for pulling the door from the pocket.
- Interference from projecting swing-door hardware: Uses hardware intended for pocket-type sliding doors rather than a conventional lever lockset.
- Uncertain replacement fit: Published thickness and backset information, plus model-specific drawings, help identify preparation differences before installation.
The 18SDLR is a privacy lock, not an exterior security deadbolt or a door closer. It does not correct a sagging track, worn rollers, binding guides, or a misaligned pocket door. Its pocket-door application does not establish universal compatibility with surface-mounted barn doors or every sliding-door system.
Product Details
- Part number: 18SDLR
- Type: Privacy sliding door lock
- Intended door type: Compatible interior pocket-type sliding doors
- Backset: 2-3/8"
- Door thickness: 1-3/8" to 1-3/4"
- Pull: Pop-up finger pull
- Preparation references: Manufacturer instructions identify a 2-1/8" face bore and 1" edge bore; verify the complete privacy-lock preparation before drilling
Finish Options
US1-Matte Black, US10B-Antique Bronze Oiled, US15-Satin Nickel, US26-Bright Chrome, and US26D-Satin Chrome. Finish names describe appearance and do not establish the base material of every component.
Dimensional Documents: Check Before Cutting
The manufacturer cutsheet shows a 4-5/8" longitudinal reference, while the separate 18SDLR template shows 3-5/8" in the corresponding view. Both documents are labeled 18SDLR. Confirm the current supplied assembly and applicable drawing with customer service before relying on either reference for a replacement or new preparation. Do not substitute overall assembly dimensions for the specified backset or drilling dimensions.
Installation Instructions and Templates
- 18SDLR (20SDLR) Installation Instructions and Template, Follow Privacy-Lock Steps
- 18SDLR 2-3/8" Backset Manufacturer Template and Dimensional Reference
