WF6341 UL LISTED SOLID BRASS LEVER FLUSH BOLT

Write A Review
Regular price $26.00
Sale price $26.00 Regular price $0.00
Unit price
-US10B-Antique Bronze Oiled
-US15-Satin Nickel
-US26-Bright Chrome
-US26D-Satin Chrome
-US3-Bright Brass
Ask a question

Ask a Question

* Required fields

Size guide Share

Usually Ships: 1-3 Business Days

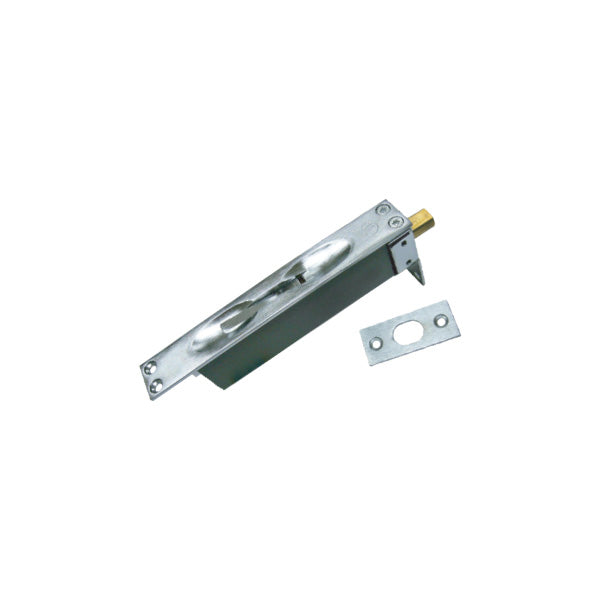

WF6341 UL Listed Solid Brass Lever Extension Flush Bolt

Our WF6341 is a manually operated solid brass lever extension flush bolt designed for wood or composite doors. Its recessed body and 5/8-inch throw provide a defined manual-bolt configuration for a properly prepared opening. Confirm the complete door, frame, strike, and hardware arrangement before ordering or replacing an existing bolt.

WF6341 Specifications

  • Part number: WF6341.
  • Operation: Manual lever extension flush bolt.
  • Type: Commercial.
  • Material: Solid brass.
  • Throw: 5/8 inch.
  • Intended door materials: Wood or composite, subject to the exact preparation and assembly requirements.
  • Listed standards reference: ANSI/BHMA A156.16, L04081.

Body, Guide, and Strike Dimensions

  • Body: 6-3/4 inches long x 1 inch wide x 1-1/4 inches deep.
  • Guide: 2-1/2 inches long x 1 inch wide x 5/64 inch thick.
  • Strike: 2-1/4 inches long x 1 inch wide x 5/64 inch thick.

Use these nominal component dimensions for initial selection, then compare the actual supplied parts with the current preparation template. Confirm rod configuration, fastening contents, and purchase quantity separately rather than assuming that body size establishes every supplied component.

Available Finish Choices

  • US10B: Antique Bronze Oiled.
  • US15: Satin Nickel.
  • US26: Bright Chrome.
  • US26D: Satin Chrome.
  • US3: Bright Brass.

Manual Control for a Prepared Door Leaf

Our WF6341 requires deliberate manual operation. For a paired-door application, coordinate bolt locations and operation with the inactive leaf, receiving strikes, and the other opening hardware. Do not assume manual operation is interchangeable with an automatic flush-bolt system.

The bolt must align with its receiving preparation without forcing the door out of position. Check the frame, floor or threshold condition, clearances, and leaf alignment as part of the installation rather than relying on the bolt to correct a sagging or poorly fitted door.

Practical Applications

  • Specified wood or composite openings: Use where the hardware schedule identifies this manual extension-bolt configuration.
  • Inactive-leaf preparation: Coordinate the selected bolt arrangement with the door pair's intended operation.
  • Replacement work: Compare the complete existing preparation, throw, receiving parts, and rod arrangement before substitution.

Everyday example: An installer servicing a wood door pair verifies that the hardware schedule calls for WF6341. They compare the existing body pocket and receiving preparations with the exact template, select the coordinating finish, and align the bolt with the door in its intended position. After fitting, they test manual engagement and release repeatedly before returning the opening to service.

Installation Guidance

  • Review the exact template: Confirm the door and frame preparation before cutting or drilling.
  • Distinguish top and bottom positions: The template dimensions illustrate the top flush bolt; it directs installers to invert and measure from the bottom edge for bottom-bolt preparation.
  • Check receiving components: Verify strike placement, engagement depth, clearance, and actual supplied parts.
  • Confirm fastening: Use fasteners suitable for the supplied hardware and receiving construction; verify packing contents before starting.
  • Test the assembly: Check full extension, complete retraction, manual release, and operation of both leaves without binding.

Fire-Rated Opening Coordination

The WF6341 preparation template states a 1-1/2-hour fire rating for wood doors up to 4 feet wide x 10 feet tall. This is an application-specific reference, not a blanket rating for every door or installation. Confirm the current listing, exact door assembly, permitted preparation, and complete hardware schedule before use in a rated opening. Do not transfer that wood-door reference to every composite-door assembly.

UL-listed component identification does not by itself establish complete-opening compliance. Confirm that manual bolts and the intended operating arrangement are permitted for the specific opening before selection.

Problems It Helps Address

  • A specified manual flush bolt needs replacement: Provides the identified WF6341 configuration.
  • The door requires a recessed lever-operated bolt: Offers the documented body and receiving-component format.
  • Visible hardware needs coordination: Provides the listed architectural finish selections.

Care and Inspection

Keep receiving openings clear and periodically inspect fastening, alignment, and full bolt travel. Correct binding, looseness, or damaged preparation promptly. Use cleaning methods appropriate to the supplied finish, and do not force the lever when the bolt and strike are misaligned.

Matching Product References

WF6341 Lever Extension Flush Bolt Cut Sheet

WF6341 Wood Door and Frame Preparation Template
